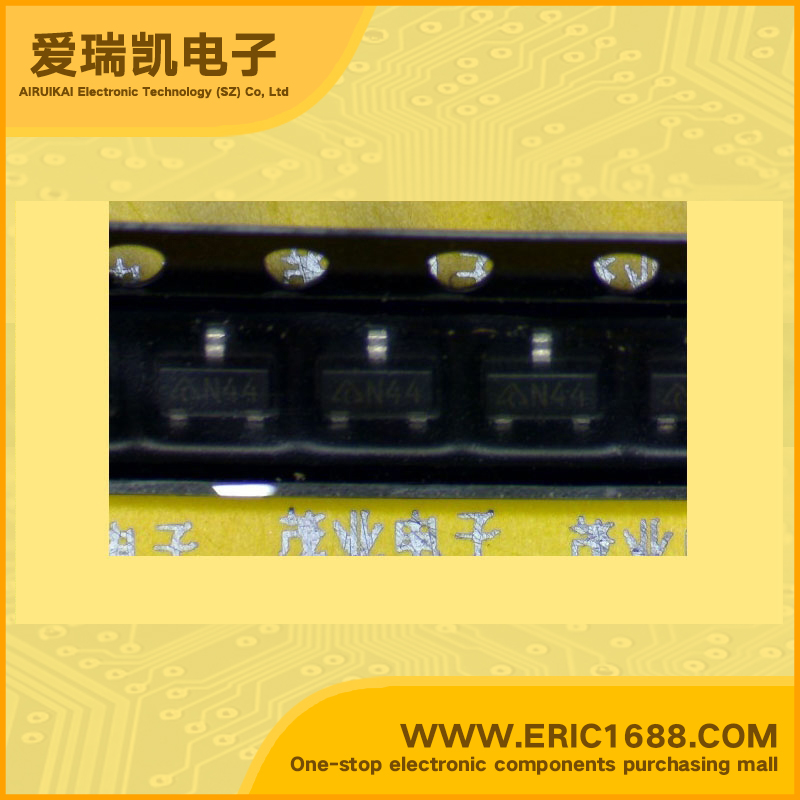

AZ431AN-B 电压基准电源IC 2.5V~18V SOT-23 marking/标记 N44 可调精密并联稳压器
| 参考类型Reference Type | |
| 输出电压VoVoltage - Output | 2.5V~18V |
| 误差Tolerance | ±0.4% |
| 温度系数Temperature Coefficient | 20ppm/°C |
| 输入电压Voltage - Input | 2.5V~18V |
| 阴极电流Current - Cathode | 1mA |
| 输出电流IOUTCurrent - Output | 100mA/0.1A |
| Description & Applications | FEATURES • ADJUSTABLE PRECISION SHUNT REGULATORS • Programmable Precise Output Voltage from 2.5V to 36V or 18V • Very Accurate Reference Voltage: 0.15% Typical • High Stability under Capacitive Load • Low Temperature Deviation: 4.5mV Typical • Low Equivalent Full-range Temperature Coefficient with 20PPM/oC Typical • Low Dynamic Output Resistance: 0.2Ω Typical • Sink Current Capacity from 1mA to 100 mA • Low Output Noise • Wide Operating Range of -40 to 125oC Applications • Charger • Voltage Adapter • Switching Power Supply • Graphic Card • Precision Voltage Reference |
| 描述与应用 | 特点 •可调精密并联稳压器 •可编程精确的输出电压从2.5V到36V或18V •非常精确的参考电压：0.15％（典型值） •高容性负载下的稳定性 •低温度偏差：4.5mV典型 •低等效满范围温度系数与20PPM/oC典型的 •低动态输出阻抗：0.2Ω典型 •灌电流从1mA容量为100 mA •低输出噪声 •宽工作电压范围为-40至125oC 应用 •充电器 •电压适配器 •开关电源 •图形卡 •精密电压参考 |
| 规格书PDF |
