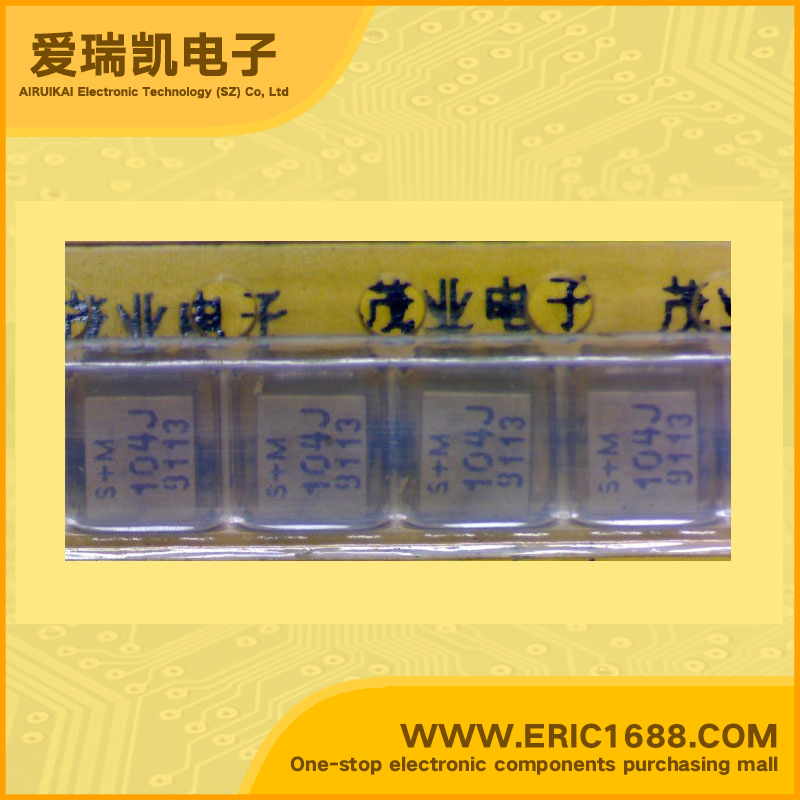

小功率电感 B82422-A1104-J100 100UH 3225-101 104J
| 电感值Inductance | 100UH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 65mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 27 @ 2.52MHz |
| 自振谐频率SRFFrequency - Self Resonant | 7MHz |
| DC电阻DCRDC Resistance (DCR) | 11.5Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | Size 1210 (EIA) or 3225 (IEC) Rated inductance 0.0082 H to 100 H Rated current 65 mA to 800 mA Construction ■ Ceramic or ferrite core ■ Laser-welded winding ■ Flame-retardant molding Features ■ Temperature range up to 145 °C ■ High Q factor ■ High resonance frequency Applications ■ Filtering of supply voltages, coupling, decoupling ■ Antenna systems ■ Automotive electronics ■ Telecommunications ■ Consumer and data processing equipment ■ Industrial electronics |
| 描述与应用 | 大小1210（EIA）或3225（IEC） 额定电感0.0082 H到100 H 额定电流65毫安到800毫安 施工 ■陶瓷或铁氧体磁芯 ■激光焊接绕组 ■阻燃成型 特点 ■温度范围可达145°C ■高Q系数 ■高谐振频率 应用 ■电源电压滤波，耦合，去耦 ■天线系统 ■汽车电子 ■电信 ■消费和数据处理设备 ■工业电子 |
| 规格书PDF |
