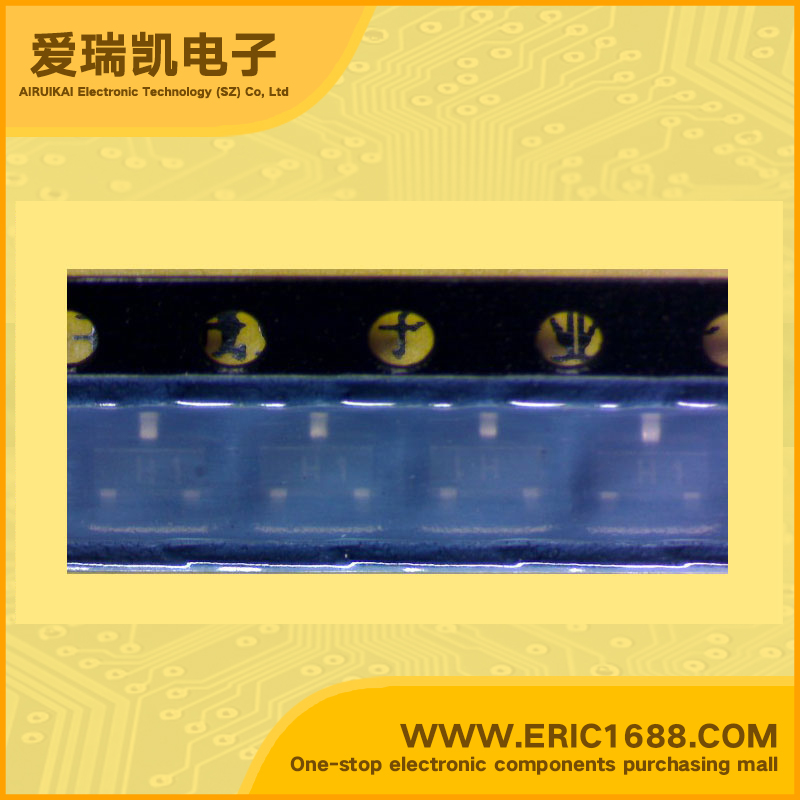

BCW69 PNP三极管 -50V -100mA/-0.1A 150MHz 120~260 -180mV/-0.18V SOT-23/SC-59 marking/标记 1H 音频放大/开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~260 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -180mV/-0.18V |
| 耗散功率PcPoWer Dissipation | 300mW/0.3W |
| Description & Applications | SMALL SIGNAL PNP TRANSISTORS SILICON EPITAXIAL PLANAR PNP TRANSISTORS MINIATURE PLASTIC PACKAGE FOR APPLICATION IN SURFACE MOUNTING CIRCUITS LOW LEVEL AUDIO AMPLIFICATION AND SWITCHING |
| 描述与应用 | 小信号PNP晶体管 硅外延平面PNP晶体管 微型塑料包装的应用在表面安装电路 低级别的音频放大和开关 |
| 规格书PDF |
