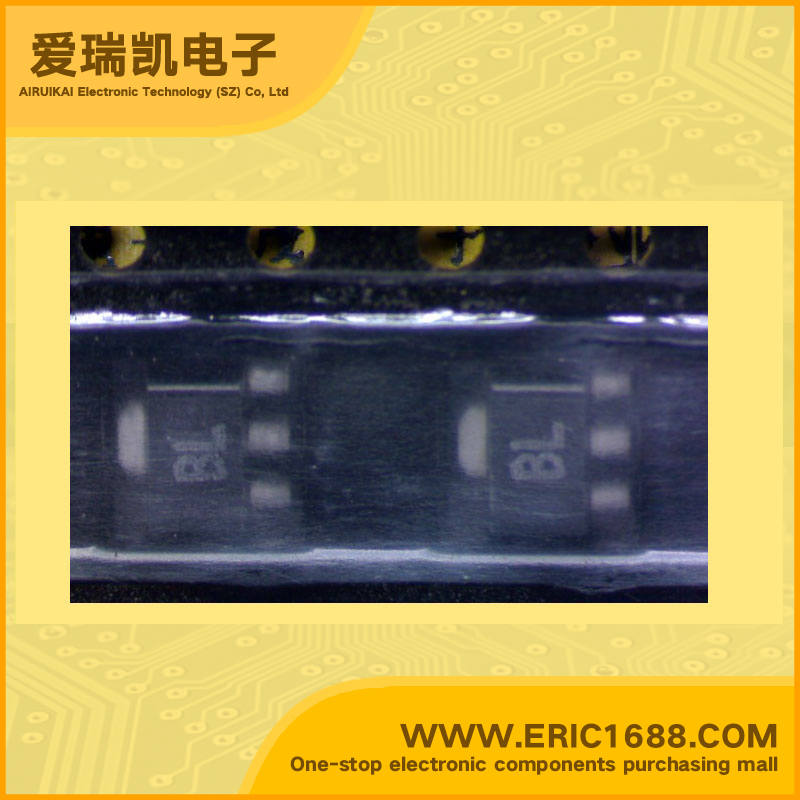

BCX5616TA NPN三极管 100V 1A 150MHz 100~250 500mV/0.5V SOT-89 marking/标记 BL
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 80V |
| 集电极连续输出电流ICCollector Current(IC) | 1A |
| 截止频率fTTranstion Frequency(fT) | 150MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~250 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | SOT89 NPN SILICON PLANAR MEDIUM POWER TRANSISTORS |
| 描述与应用 | 中等功率晶体管 |
| 规格书PDF |
