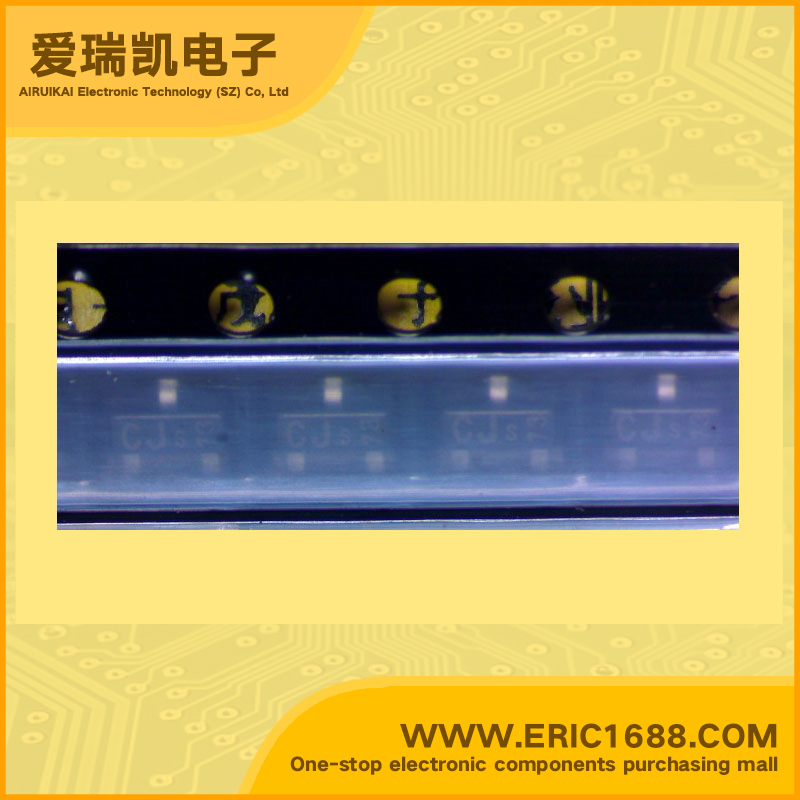

BSS80C PNP三极管 -60V -800mA/-0.8A 250MHz 100~300 -400mV/-0.4V SOT-23/SC-59 marking/标记 CJ 高直流电流增益
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −40V |
| 集电极连续输出电流ICCollector Current(IC) | -800mA/-0.8A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -400mV/-0.4V |
| 耗散功率PcPoWer Dissipation | 330mW/0.33W |
| Description & Applications | SWITCHING TRANSISTORS |
| 描述与应用 | 开关晶体管 |
| 规格书PDF |
