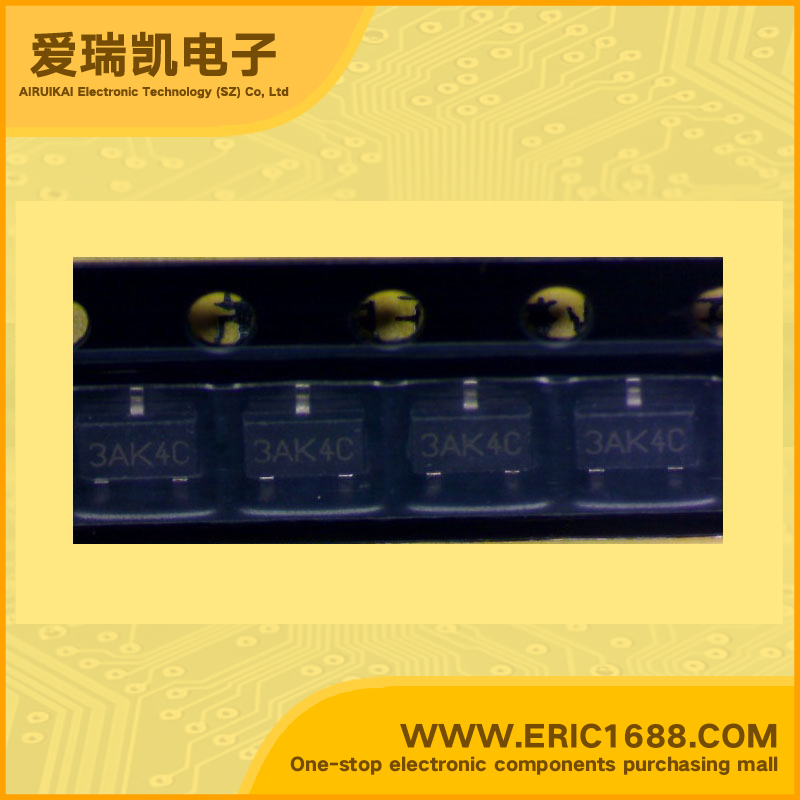

CM2830AKIM23TR LDO电压调整器/稳压电源IC 2.5V 800mV/0.8V SOT-23 marking/标记 3AK4C 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 7V |
| 输出电压VOUTVoltage - Output | 2.5V |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 800mV/0.8V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 330mW/0.33W |
| Description & Applications | 300mA CMOS LDO；•Very Low Dropout Voltage •Low Current Consumption: Typ. 30 µA, Max. 35 µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 300mA Output •Input Range up to 7.0V • Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient |
| 描述与应用 | 300mA的CMOS LDO;•非常低压差电压 •低电流消耗：典型。 30μA，最大。 35μA •高精度输出电压：+/ - 1.5％ •保证300mA输出 •高达7.0V的输入电压范围 •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数 |
| 规格书PDF |
