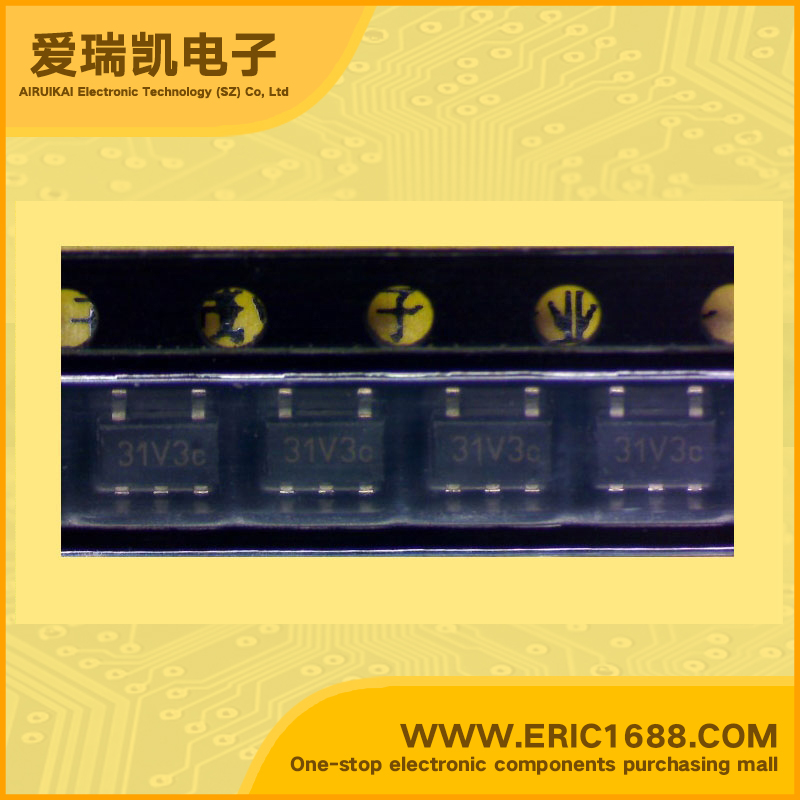

CM2831VIM25TR LDO电压调整器/稳压电源IC 3.6V 300mV/0.3V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 31V3 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 7V |
| 输出电压VOUTVoltage - Output | 3.6V |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 300mA CMOS LDO WITH ENABLE；•Very Low Dropout Voltage •Low Current Consumption: Typ. 30µA, Max. 35µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 300mA Output •Input Range of 2.6V to 7.0V •Thermal Shutdown •Current Limiting •Compact Package: SOT-23-5 •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient |
| 描述与应用 | 300mA的CMOS LDO带有使能端;•非常低压差电压 •低电流消耗：典型。 30μA，最大。 35μA •高精度输出电压：+/ - 1.5％ •保证300mA输出 •输入电压范围为2.6V至7.0V •热关断 •电流限制 •紧凑型封装形式：SOT-23-5 •工厂Pre-set输出电压 •短路电流折返 •低温度系数 |
