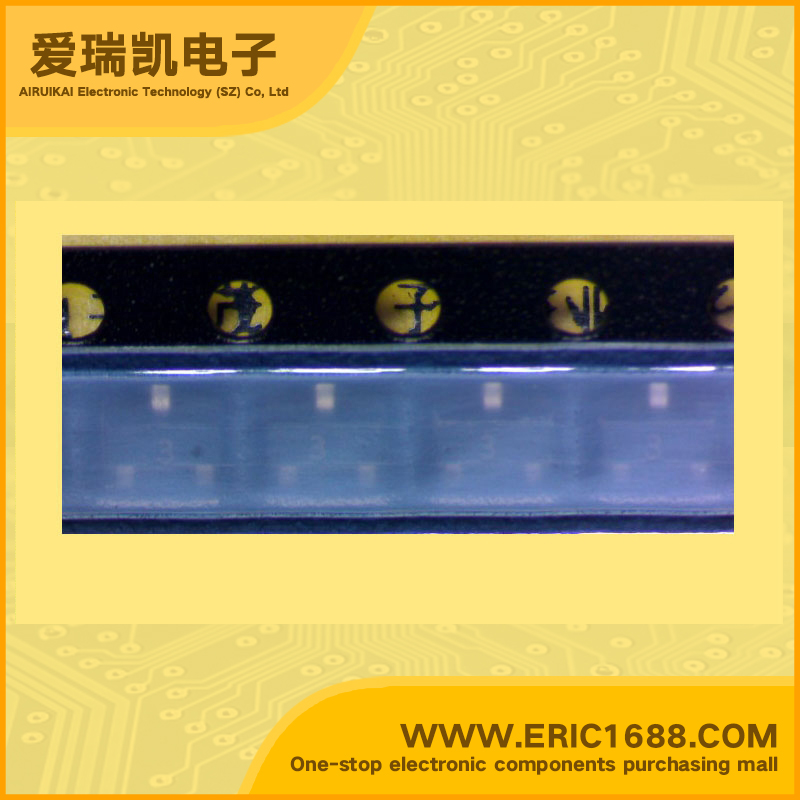

CMBT918 NPN三极管 30V 350mA/0.35A 600MHz 20 400mV/0.4V SOT-23/SC-59 marking/标记 3 VHF/UHF晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 350mA/0.35A |
| 截止频率fTTranstion Frequency(fT) | 600MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 20 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 225mW/0.225W |
| Description & Applications | VHF/UHF TRANSISTOR |
| 描述与应用 | VHF/ UHF晶体管 |
| 规格书PDF |
