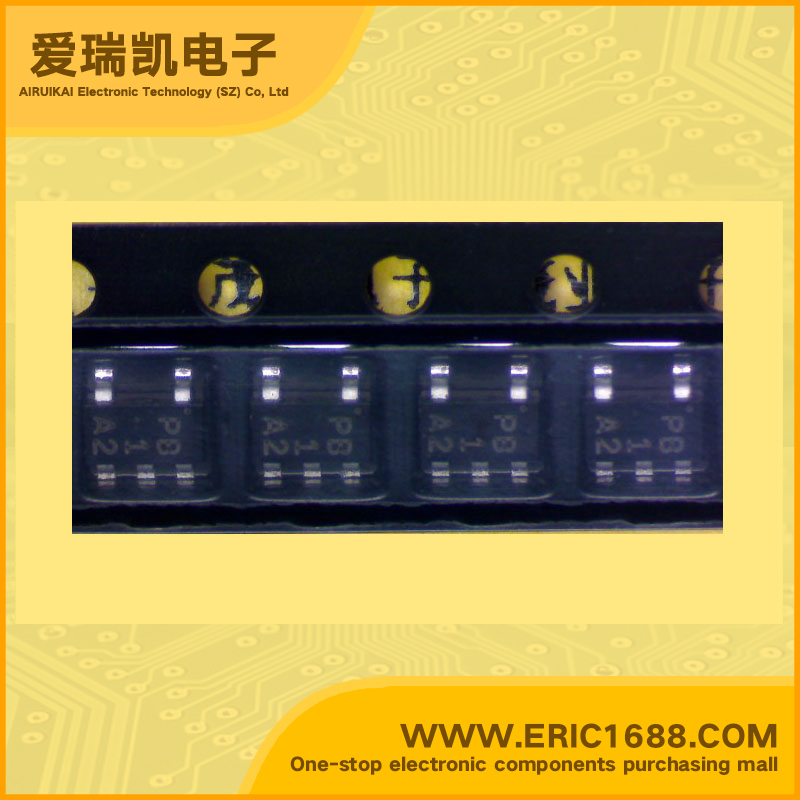

CPH5702 复合三极管+二极管 3A 30V SOT-153 标记PB
| 三极管BJT类型 TYPE | NPN |
| 三极管BJT集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 40V |
| 三极管BJT集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 30V |
| 三极管BJT集电极连续输出电流IC Collector Current(IC) | 3A |
| 三极管BJT截止频率fT Transtion Frequency(fT) | 450MHz |
| 三极管BJT直流电流增益hFE DC Current Gain(hFE) | 500mA |
| 三极管BJT管压降VCE（sat） Collector-Emitter Saturation Voltage | 120~185mV |
| 二极管DIODE类型 TYPE | 肖特基-单管 SBD-Single |
| 二极管DIODE反向电压VR Reverse Voltage | 30V |
| 二极管DIODE正向整流电流Io Rectified Current | 700mA |
| 二极管DIODE正向电压降VF Forward Voltage(Vf) | 550mV |
| 耗散功率Pc Power Dissipation | 900mW |
| Description & Applications | Features • TR : NPN Epitaxial Planar Silicon Transistor SBD : Schottky Barrier Diode • DC/DC Converter Applications • Composite type with a NPN transistor and a Schottky barrier diode contained in one package facilitating high-density mounting. • The CPH5702 consists of two chips encapsulated in a package which are equivalent to the CPH3209 and the SB07-03C, respectively. • Ultrasmall-sized package permitting applied sets to be made small and slim (0.9mm). |
| 描述与应用 | 特点 •TR：NPN平面外延硅晶体管 SBD：肖特基二极管 •DC / DC转换器应用 •复合型与NPN晶体管和肖特基势垒二极管中包含一个包装促进高密度安装。 •CPH5702由两个芯片封装在一个包中的相当于CPH3209和SB07-03C，分别。 •允许应用套小型和超薄（0.9毫米）的超小尺寸封装。 |
