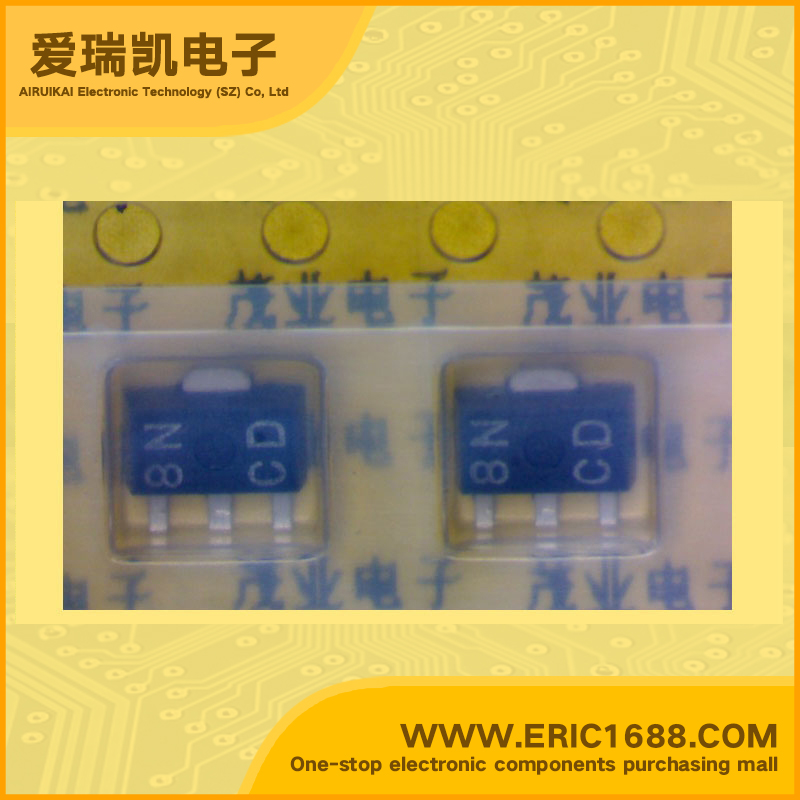

单向可控硅 CR05AS-8-B 0.8V 3mA SOT-89 marking/标记 CD
| 反向重复峰值电压VRRM/断态重复峰值电压VDRMRepetitive peak reverse voltage/Repetitive peak off-state voltage | 400V |
| 通态平均电流IT(AV)Average on-state current | 0.5A |
| 通态最大电流IT(RMS)RMS on-state current | 0.79A |
| 栅极触发电压VGTGate trigger voltage | 0.8V |
| 栅极触发电流IGTGate trigger current | 20μA-100μA |
| 保持电流IHHolding current | 3mA |
| 峰值通态电压VTMOn-state voltage | 1.9V |
| 重复峰值断态电流IDRMRepetitive peak off-state current | 0.1mA |
| 浪涌电流ITSM(50Hz、60Hz)Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A |
| Description & Applications | Low Power Use For Solid state relay, strobe flasher, igniter, and hybrid IC Non-Insulated Type Planar Passivation Type |
| 描述与应用 | 低功耗使用 用于固态继电器，频闪闪光器，点火器和混合集成电路 非绝缘型 平面钝化类型 |
| 规格书PDF |
