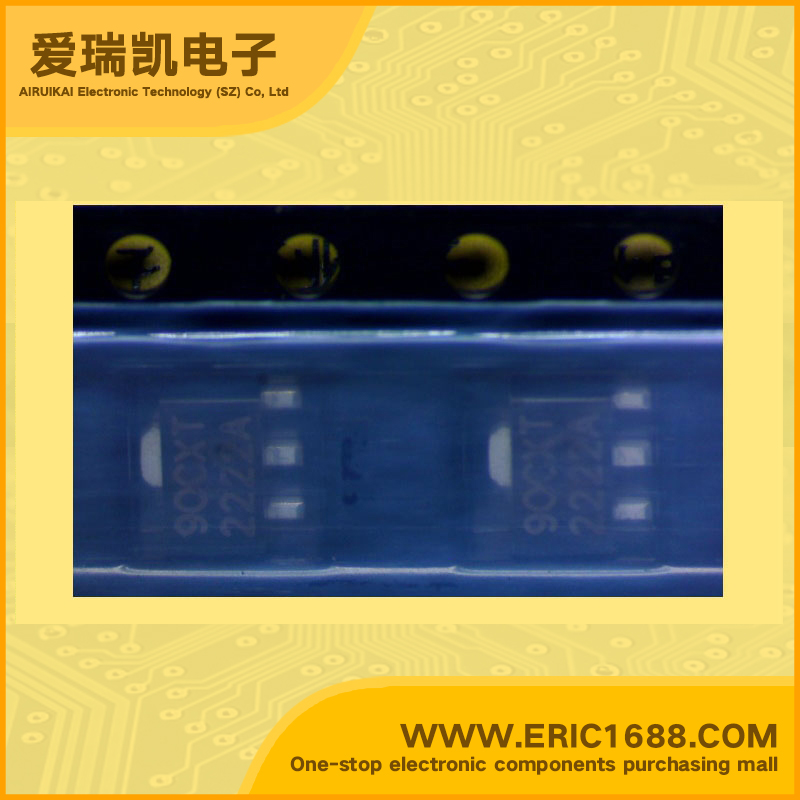

CXT2222A NPN三极管 75V 600mA/0.6a 300MHz 100~300 1V SOT-89 marking/标记 CXT2222A 通用放大器和开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 75V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 600mA/0.6A |
| 截止频率fTTranstion Frequency(fT) | 300MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 1V |
| 耗散功率PcPower Dissipation | 1.2W |
| Description & Applications | SURFACE MOUNT NPN SILICON TRANSISTOR The CENTRAL SEMICONDUCTOR CZT2222A type is an NPN silicon transistor manufactured by the epitaxial planar process, epoxy molded in a surface mount package,designed for general purpose amplifier and switching applications. |
| 描述与应用 | 表面贴装 NPN硅晶体管 该中央半导体CZT2222A的类型是NPN硅晶体管 由外延平面工艺，环氧树脂模压在一个表面贴装封装，为通用放大器和开关应用而设计制造。 |
| 规格书PDF |
