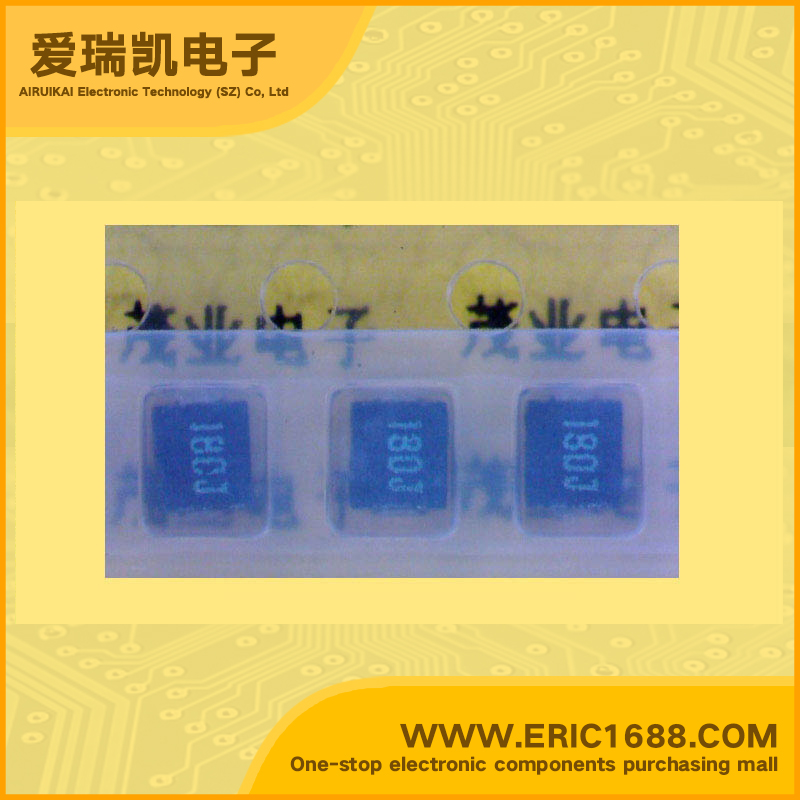

小功率电感 ELJFC180JF 18UH 2520-180J 180
电感值Inductance | 18UH |
误差Tolerance | ±5% |
额定电流Current Rating | 70mA |
饱和电流Current - Saturation | |
不同频率时的Q值Q @ Frequency | 25 @ 2.52MHz |
自振谐频率SRFFrequency - Self Resonant | 25MHz |
DC电阻DCRDC Resistance (DCR) | 5.4Ω/Ohm |
屏蔽Shielding | 无屏蔽 Unshielded |
Description & Applications | ● General use wire wound and resin molded chip inductor. Features ● High Q ● Good for mounting ● Wide allowable range (1.0 nH to 1000 µH) ● Recommended Applications ● CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras |
描述与应用 | ●通用线绕和树脂模压片式电感器。 特点 ●高Q值 ●适合安装 ●允许的范围宽(1.0 nH至1000μH) ●推荐应用 ●CTV,VTR,HIC,硬盘,软驱,无绳电话,便携式电话 寻呼机,视频摄像头 |
规格书PDF |
