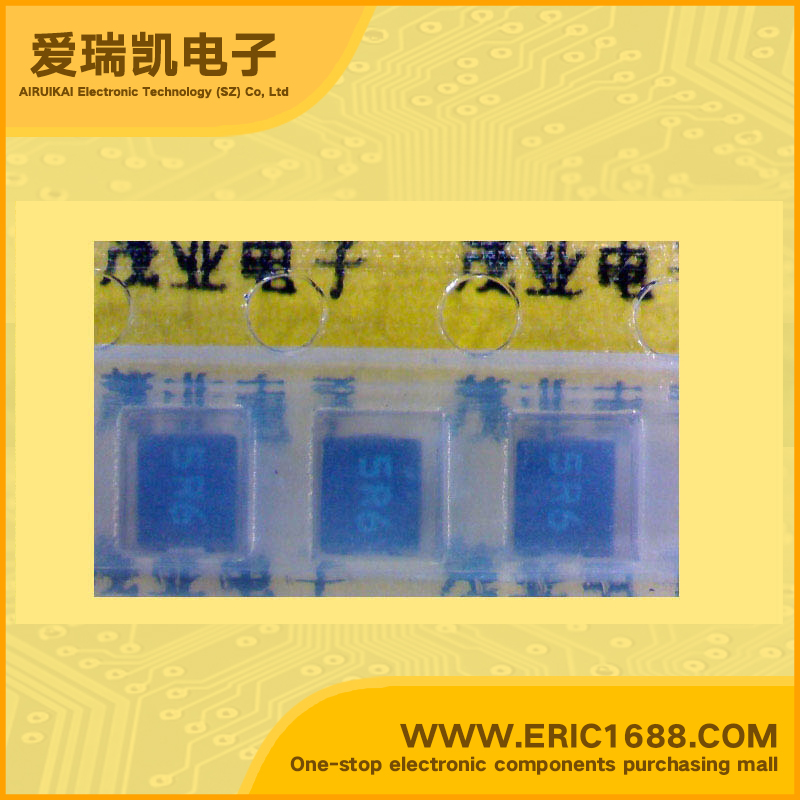

小功率电感 ELJFC5R6KF 5.6UH 2520-5R6K 5R6
| 电感值Inductance | 5.6UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 120mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 25 @ 7.96MHz |
| 自振谐频率SRFFrequency - Self Resonant | 50MHz |
| DC电阻DCRDC Resistance (DCR) | 1.75Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | ● General use wire wound and resin molded chip inductor. Features ● High Q ● Good for mounting ● Wide allowable range (1.0 nH to 1000 µH) ● Recommended Applications ● CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras |
| 描述与应用 | ●通用线绕和树脂模压片式电感器。 特点 ●高Q值 ●适合安装 ●允许的范围宽（1.0 nH至1000μH） ●推荐应用 ●CTV，VTR，HIC，硬盘，软驱，无绳电话，便携式电话 寻呼机，视频摄像头 |
| 规格书PDF |
