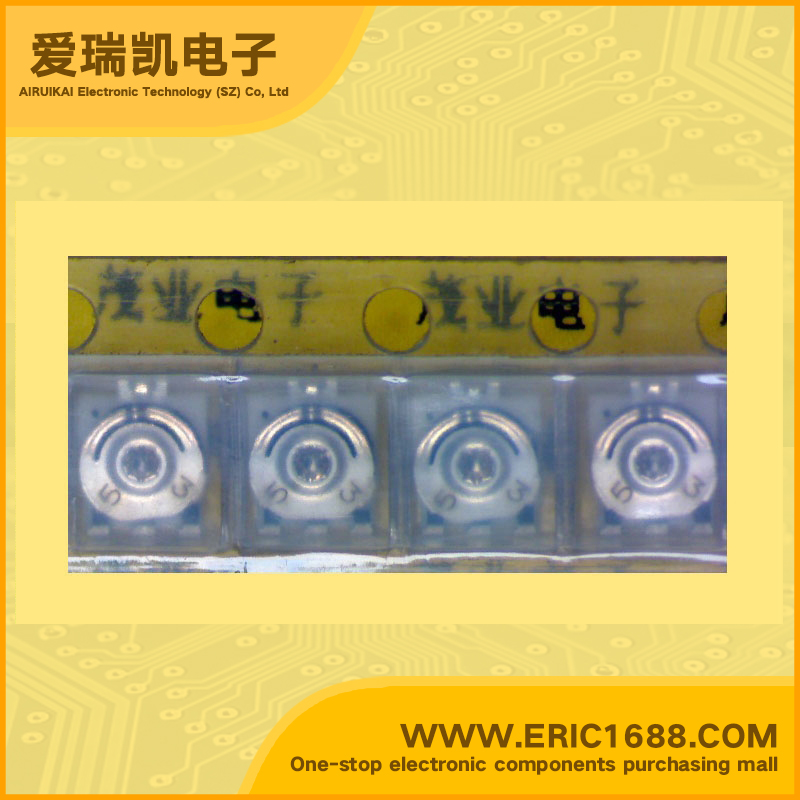

3毫米方形贴片微调电位器 EVM3RSX50B53 5KΩ/Ohm 3X3-5K marking/标记 53
| 电阻值Resistance | 5KΩ/Ohm |
| 额定功率Power | 0.15W |
| 容差Tolerance | ±25% |
| 温度系数Temperature Coefficient | ±250 ppm/°C |
| 圈数Number of Turns | 单圈 Single |
| 调节类型Adjustment Type | 背面调节 Back Side Adjustment |
| 端子类型Termination Style | J引线 J Lead |
| Description & Applications | ●"3 mm Square SMT Trimmer Potentiometers (Cermet, Open Frame Type)" ● Both sides adjust type (evm3s) ● Back sides adjust type and low-profile 0.9mm(1.0mm max) EVM3R ● Automatic adjustment type (EVM3E) ● high reliability realized by cermet element |
| 描述与应用 | ●“3毫米方形贴片微调电位器 （陶瓷，开架式）“ ●双方调整型（evm3s） ●背面调整类型和低调0.9毫米的（1.0mm最大）EVM3R品 ●自动调整型（EVM3E） ●高可靠性的金属陶瓷元件实现 |
| 规格书PDF |
