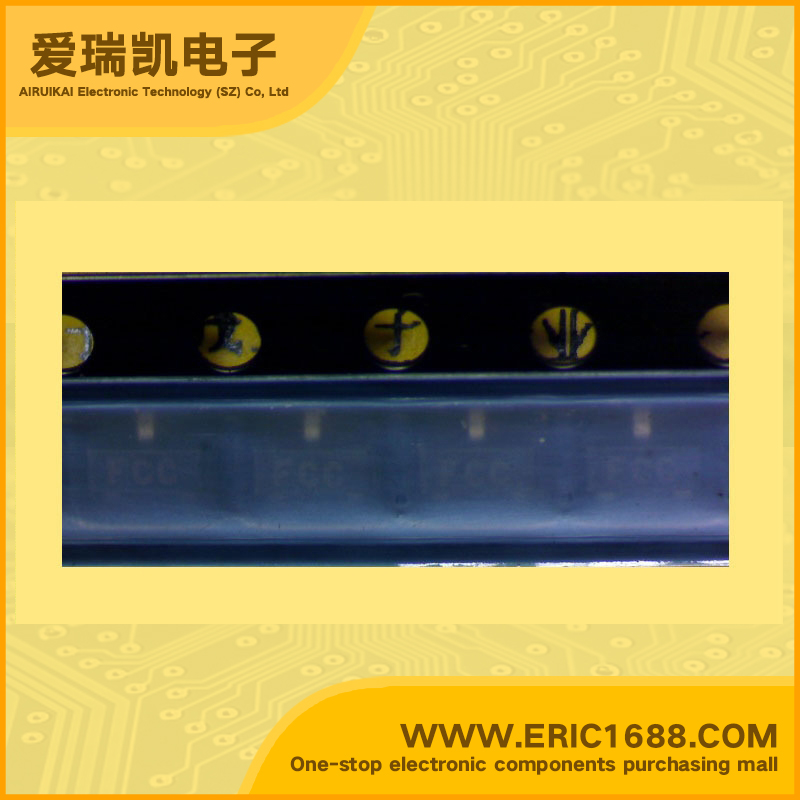

FAN4050CIS325X 电压基准电源IC 2.5V SOT-23 marking/标记 FCC 精密微功耗并联电压参考
参考类型Reference Type | |
输出电压VoVoltage - Output | 2.5V |
误差Tolerance | ±0.1% |
温度系数Temperature Coefficient | 50ppm/°C |
输入电压Voltage - Input | |
阴极电流Current - Cathode | 65uA |
输出电流IOUTCurrent - Output | 15mA |
Description & Applications | FEATURES • Precision Micropower Shunt Voltage Reference • Fixed 2.500V and 3.300V • Tolerances to +0.1% (25°C) • Low output noise • Low temperature coefficient, 50ppm/°C max • Small package: SOT-23 • Extended operating current range Applications • Portable equipment • Disk drives • Instrumentation • Audio equipment • Data acquisition systems |
描述与应用 | 特点 •精密微功耗并联电压参考 •固定的2.500V和3.300V •公差+0.1%(25°C) •低输出噪声 •低温度系数50PPM/°C最大 •小型封装:SOT-23 •扩展的工作电流范围 应用 •便携式设备 •磁盘驱动器 •仪表 •音频设备 •数据采集系统 |
规格书PDF |
