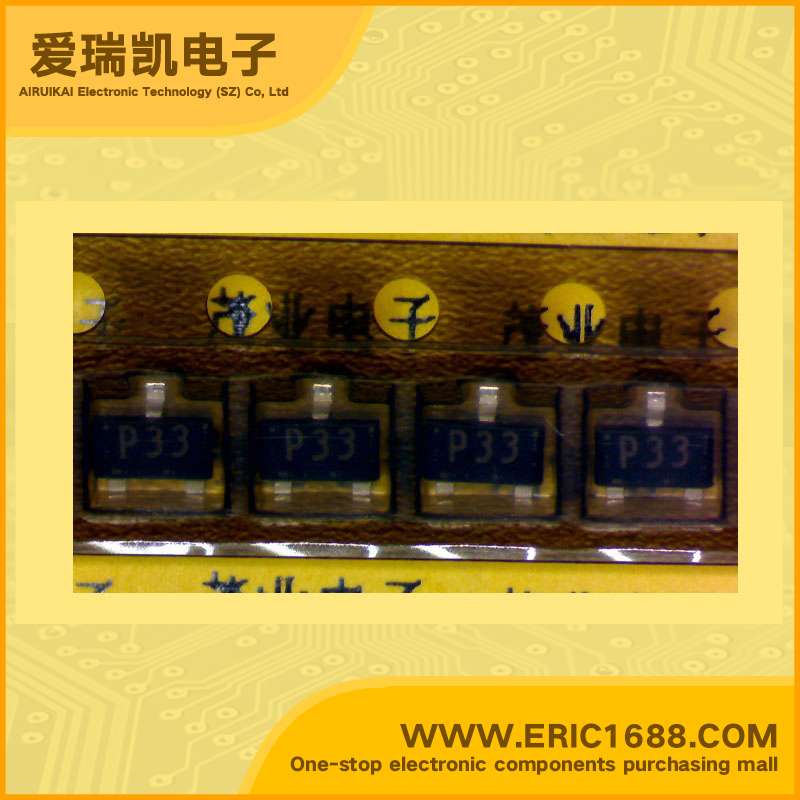

FB1F3P 带阻NPN三极管 30V 700mA/0.7A 2.2k 10k 增益135-300 SOT-23/SC-59 marking/标记 P33
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流IC Collector Current(IC) | 700mA/0.7A |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.22 |
| 直流电流增益hFE DC Current Gain(hFE) | 135-300 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • Up to 0.7 A current drive available • On-chip bias resistor • Low power consumption during drive |
| 描述与应用 | 特性 •高达0.7 A电流驱动 •片上偏置电阻 •驱动低功耗 |
