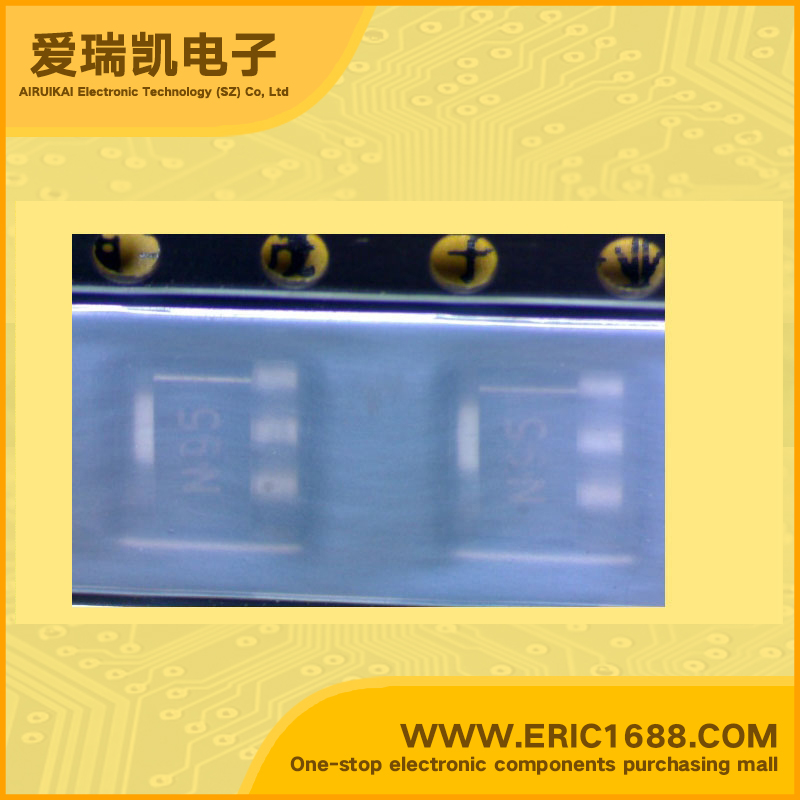

FCX495TA NPN三极管 170V 1A 100MHz 100~300 300mV/0.3V SOT-89 marking/标记 N5
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 170V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 150V |
| 集电极连续输出电流ICCollector Current(IC) | 1A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | SOT89 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR 1 Amp continuous current |
| 描述与应用 | SOT89 NPN硅平面高压晶体管 1安培连续电流 |
| 规格书PDF |
