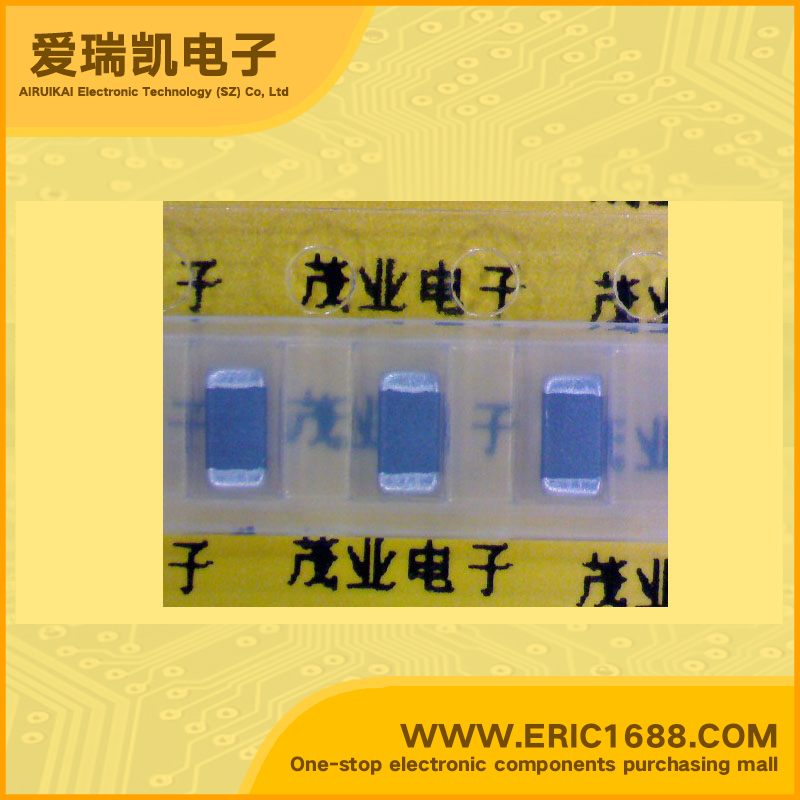

小功率电感 FI-B3216-152K 1.5UH 1206-1R5K
| 电感值Inductance | 1.5UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 50mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 80 @ 10MHz |
| 自振谐频率SRFFrequency - Self Resonant | 70MHz |
| DC电阻DCRDC Resistance (DCR) | 0.3Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | CHIP FERRITE INDUCTORS Features 1. Perfect for high density surface mount applications since magnetic shield eliminates crosstalk. 2. Highly reliable in wide temperature and humidity range. Superior Q characteristics in wide frequency. 3. Terminal electrode has excellent solder heat resistance. Applications 1. Prevention of electromagnetic interference to signals on the secondary side of electronic equipment. |
| 描述与应用 | 片式铁氧体电感 特点 1。完美高密度表面安装应用程序，因为磁屏蔽消除了串扰。 2。高度可靠的，在很宽的温度和湿度范围。高级Q特性在很宽的频率。 3。终端电极具有优良的焊接耐热性。 应用 1。防止在次级侧上的信号的电子设备的电磁干扰。 |
| 规格书PDF |
