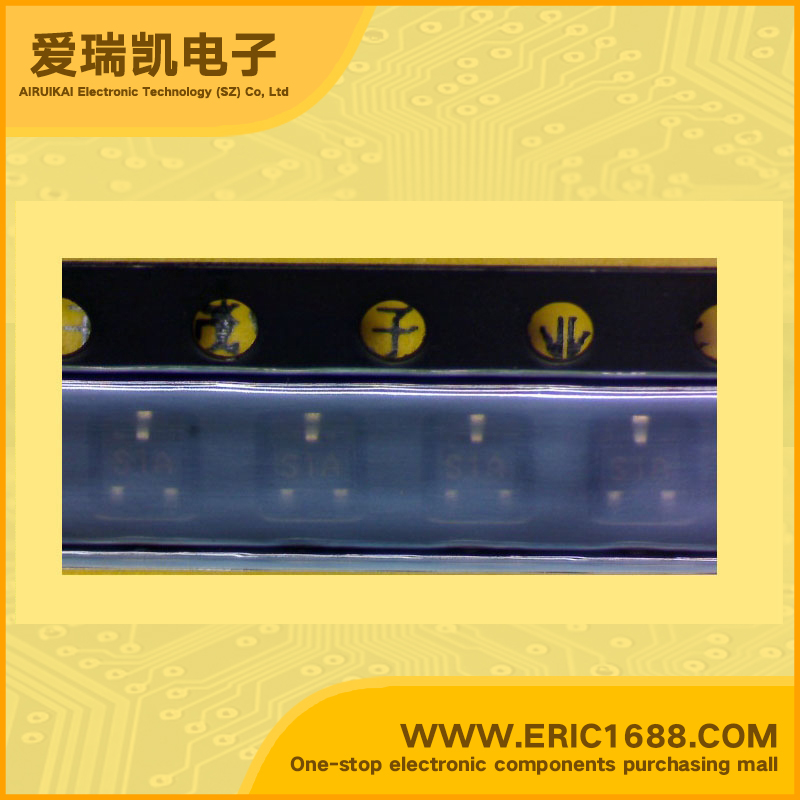

FJX3904TF NPN三极管 60V 200mA/0.2A 300MHz 100~300 300mV/0.3V SOT-323/SC-70 marking/标记 S1A
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 40V |
| 集电极连续输出电流ICCollector Current(IC) | 200mA/0.2A |
| 截止频率fTTranstion Frequency(fT) | 300MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 350mW/0.35W |
| Description & Applications | NPN Epitaxial Silicon Transistor General Purpose Transistor |
| 描述与应用 | NPN外延硅晶体管 通用晶体管 |
| 规格书PDF |
