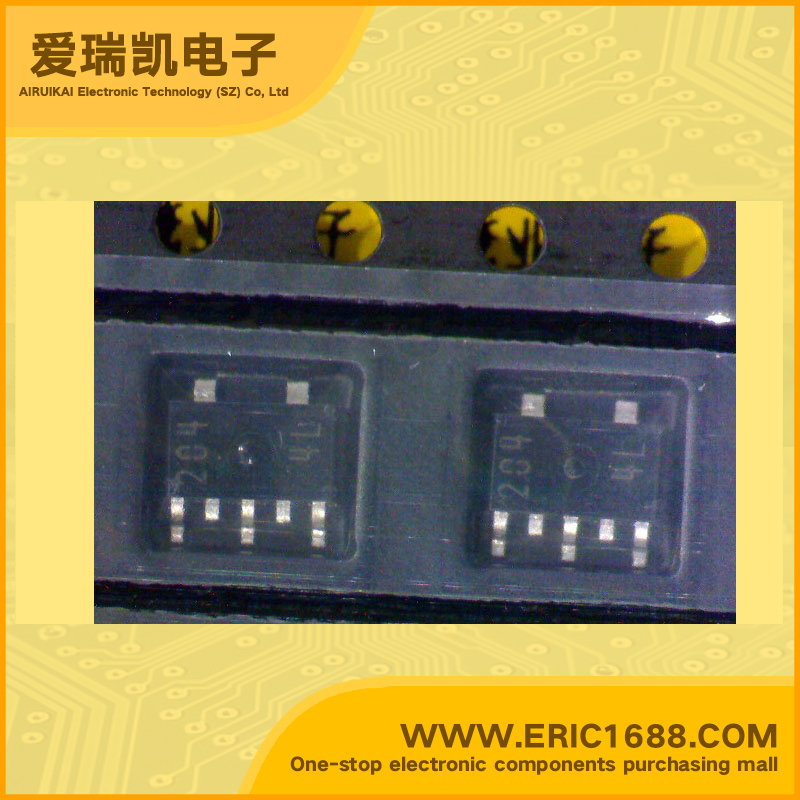

FP204 PNP+NPN复合三极管 -60V/60V -2A/2A 140~400 PCP5 标记204 用于开关/数字电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -60V/60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V/50V |
| 集电极连续输出电流IC Collector Current(IC) | -2A/2A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 140~400 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | -250mV/150mV |
| 耗散功率Pc Power Dissipation | 1100mW |
| Description & Applications | Features • PNP/NPN Epitaxial Planar Silicon Transistor • Push-Pull Circuit Applications • Composite type with a PNP transistor and an NPN transistor in one package, facilitating high-density mounting. • The FP204 is composed of 2 chips, one being equivalent to the 2SB1123 and 2SD1623, which are placed in one package. |
| 描述与应用 | 特点 •PNP/ NPN平面外延硅晶体管 •推挽电路应用 •复合型与PNP晶体管和一个NPN •在一个封装的晶体管，促进高密度安装。 •FP2042芯片组成，其中之一是相当于2SB1123和2SD1623，这是放置在一个包装。 |
