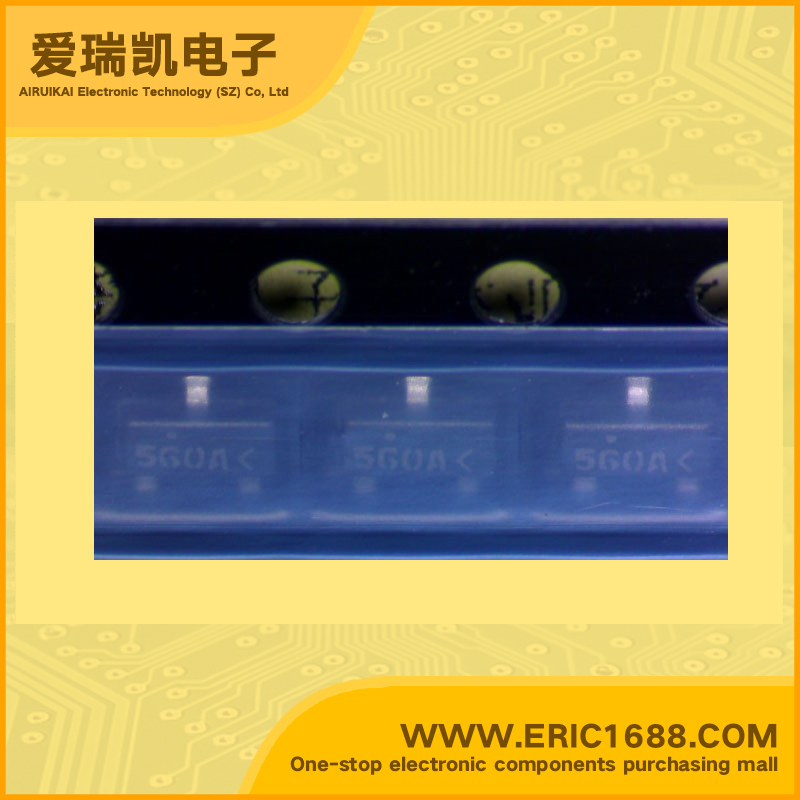

FSB560A NPN三极管 80V 2A 75MHz 250~550 350mV/0.35V SOT-23/SC-59 marking/标记 560A 低饱和晶体管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流ICCollector Current(IC) | 2A |
| 截止频率fTTranstion Frequency(fT) | 75MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 250~550 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 350mV/0.35V |
| 耗散功率PcPower Dissipation | 500mW/0.5W |
| Description & Applications | NPN Low Saturation Transistor high current gain |
| 描述与应用 | NPN低饱和晶体管 高电流增益 |
| 规格书PDF |
