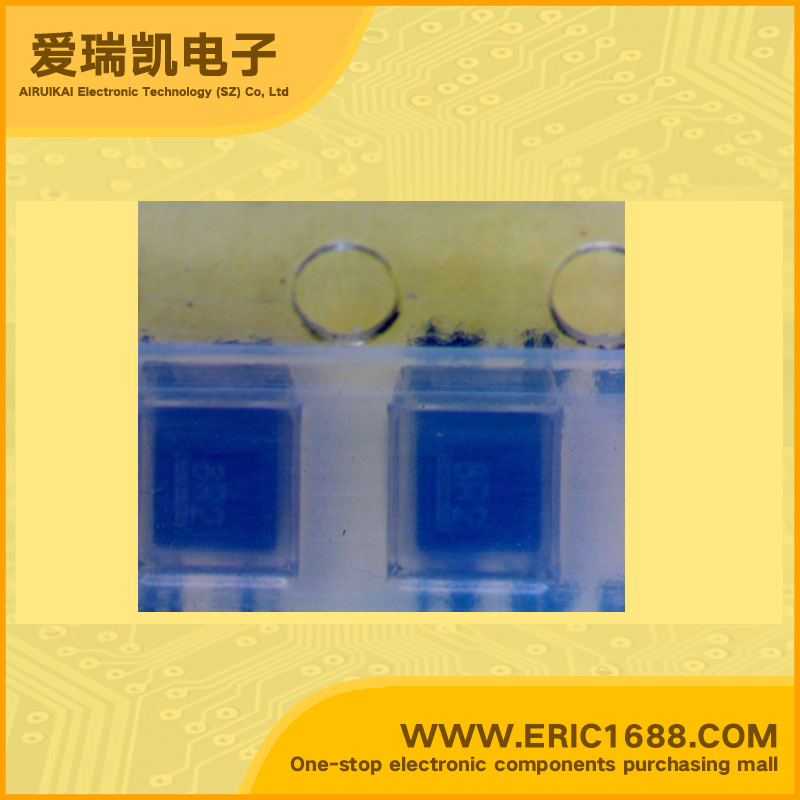

小功率电感 FSLM2520-8R2J 8.2UH 2520-8R2J 8R2
| 电感值Inductance | 8.2UH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 160mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 30 @ 7.96MHz |
| 自振谐频率SRFFrequency - Self Resonant | 50MHz |
| DC电阻DCRDC Resistance (DCR) | 2.6Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | Wire Wound Chip Inductors • Wire-wound miniature chip inductor most suitable for surface mount. • It is recommended for wide general use for signal conditioning in a variety of electronic equipment. • Low profile 1.7mm Max height. (1.6mm Typ.) • Wide inductance range from 0.1 to 220μH. • Superior solderability and high heat-resistance for reflow soldering. • Excellent environmental and mechanical stability. • RoHS compliant. |
| 描述与应用 | 绕线片式电感器 •绕线微型片式电感器，最适合表面贴装。 •建议用于信号调节的广泛使用在各种电子设备。 •超薄1.7mm以下的高度。 （典型值1.6毫米） •宽电感范围从0.1到220μH。 •优良的可焊和回流焊高耐热性。 •优良的环境和机械稳定性。 •符合RoHS标准。 |
| 规格书PDF |
