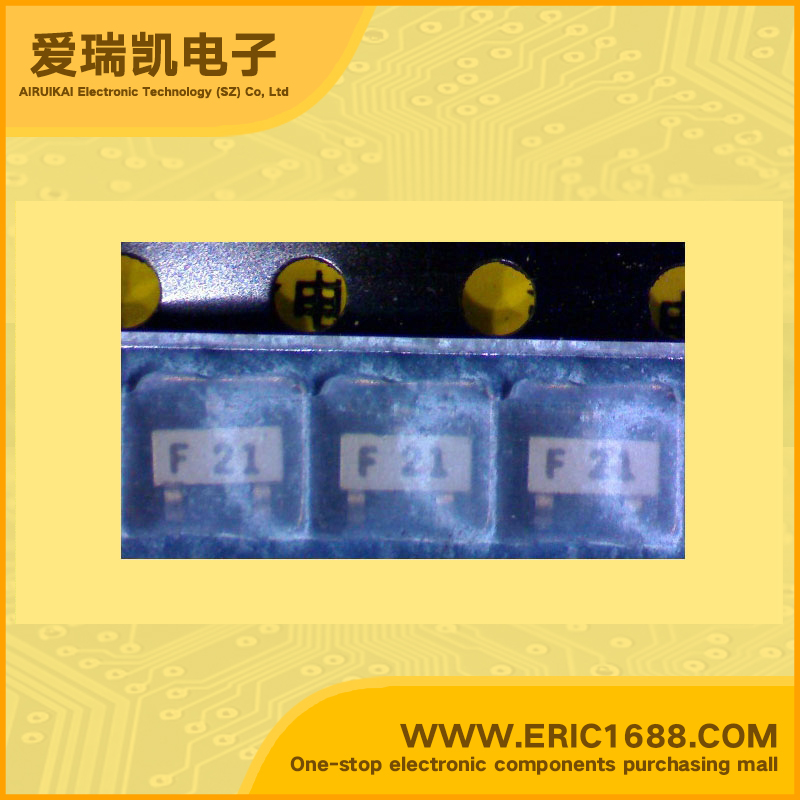

FTSO5771.LA PNP三极管 -15V -50mA 50~120 -600mV/-0.6V SOT-23/SC-59 marking/标记 F21 超高速饱和逻辑开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −15V |
| 集电极连续输出电流ICCollector Current(IC) | -50mA |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | 50~120 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −600mV/-0.6V |
| 耗散功率PcPoWer Dissipation | 625mW/0.625W |
| Description & Applications | PNP ultra high speed saturated logic switch |
| 描述与应用 | PNP超高速饱和逻辑开关 |
| 规格书PDF |
