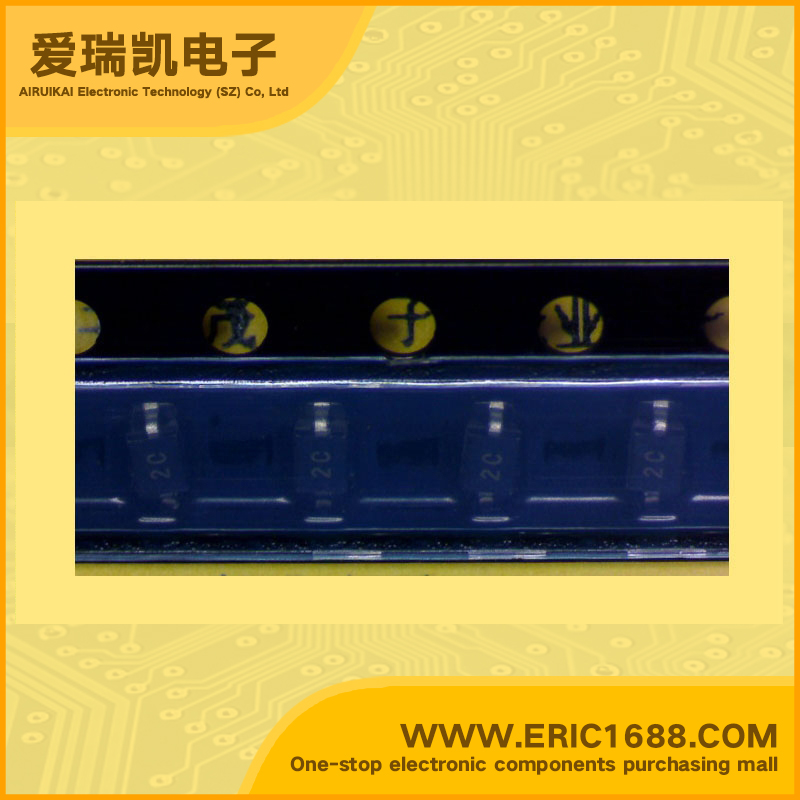

GBLC12C-LF-T7 瞬态抑制二极管TVS/ESD 12V SOD-323/0805-12V 标记2C
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 12V |
| 反向击穿电压VBRBreakdown Voltage | 13.3V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 350V |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | ULTRA LOW CAPACITANCE TVS ARRAY；FEATURES • 350 Watts Peak Pulse Power per Line (tp = 8/20µs) • Unidirectional & Bidirectional Configurations • Replacement for MLV (0805) • Protects One Power or I/O Port • ESD Protection > 40 kilovolts • Low Clamping Voltage • Available in Multiple Voltage Types Ranging from 3V to 24V • ULTRA LOW CAPACITANCE: 3pF Typical |
| 描述与应用 | 超低电容TVS阵列;特性 • 350瓦峰值脉冲功率每条线（TP =8/20μS） • 单向及双向配置 • 更换MLV（0805） • 保护电源或I / O端口 • ESD保护>40千伏 • 低钳位电压 • 多从3V到24V电压类型 • 超低电容：3PF一般 |
| 规格书PDF |
