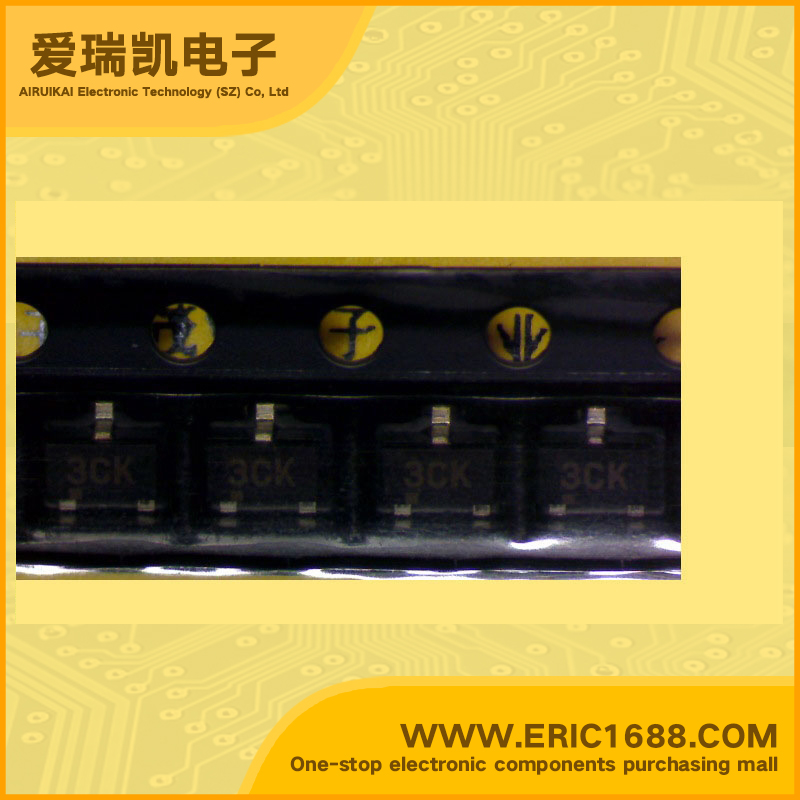

HA17431HLTPEL 电压基准电源IC 2.5V~36V SOT-23 marking/标记 3Ck 并联稳压器 参考电压具有低温度系数
参考类型Reference Type | |
输出电压VoVoltage - Output | 2.5V~36V |
误差Tolerance | |
温度系数Temperature Coefficient | 30ppm/°C |
输入电压Voltage - Input | 2.5V~36V |
阴极电流Current - Cathode | 200uA |
输出电流IOUTCurrent - Output | 50mA |
Description & Applications | FEATURES • SHUNT REGULATOR • The reference voltage provide 2.500 V ±1% at Ta = 25°C • The reference voltage has a low temperature coefficient • The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards |
描述与应用 | 特点 •并联稳压器 •参考电压为2.500 V±1%在Ta= 25°C •参考电压具有低温度系数 •MPAK-5V(5针),MPAKV(3针),并UPAKV微型封装的最佳选择使用高安装密度电路板 |
规格书PDF |
