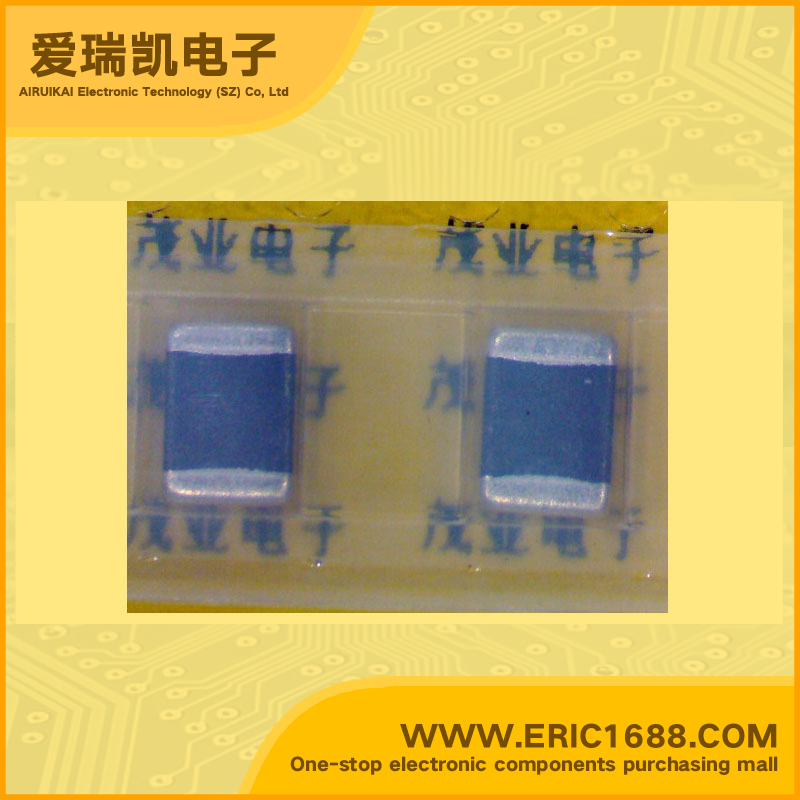

磁珠 HB-1H4532-121JT 4532-121
| 不同频率时的阻抗Impedance @ Frequency | 120Ω@100MHz |
| 额定电流Current Rating | 600mA |
| DC电阻DCRDC Resistance | 40mΩ |
| Description & Applications | Features 1. Effective for suppressing noise at high frequency, from several ㎒ to several hundreds ㎒. 2. Chip type is suited for preventing the abnormal oscillation from high frequency amplifying circuits. 3. Terminal electrode has excellent solder heat resistance. 4. Frequency characteristics of the high impedance products for high performance electronic systems. 5. Highly reliability in the circuits of high-current, because internal electrode has low resistivity. Applications 1. Noise suppression in digital equipment. 2. Computers and it's peripheral devices, VCR and camera. 3. Noise suppression in automotive electronic equipment, car stereo, car engine controller. 4. Noise suppression for OA electronic instruments. |
| 描述与应用 | 特点 1。有效抑制在高频率的噪音，从几㎒到几百㎒。 2。芯片型适合用于防止由高频放大电路的异常振荡。 3。终端电极具有优良的焊接耐热性。 4。产品的高性能电子系统的高阻抗的频率特性。 5。高可靠性，大电流的电路中，由于内部电极具有低的电阻率。 应用 1。噪声抑制数字设备。 2。计算机和外围设备，录像机和摄像机。 3。噪声抑制在汽车电子设备，汽车音响，汽车引擎控制器。 4。 OA电子仪器的噪声抑制。 |
| 规格书PDF |
