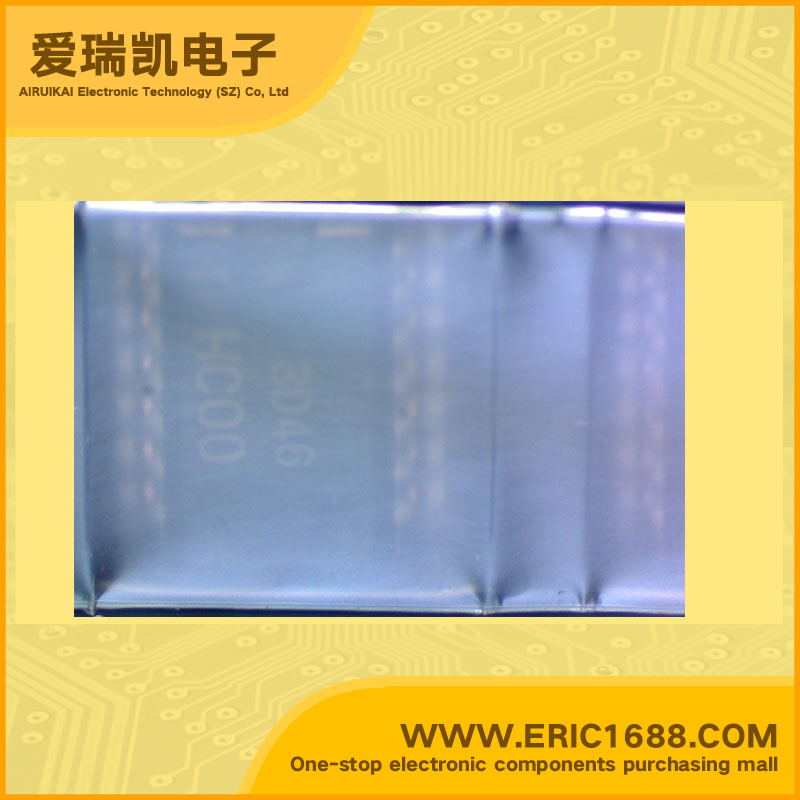

集成电路IC 与非门 HD74HC00FP SOP14 marking/标记 HC
| 逻辑类型Logic Type | 与非门 NAND Gate |
| 电路数Number of Circuits | 4 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~6V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -5.2mA，5.2mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 8ns @ 4.5V，50pF |
| Description & Applications | Quad. 2-input NAND Gates；Features High Speed Operation: tpd = 6.5 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C) |
| 描述与应用 | 四。 双输入与非门;特性 高速操作：TPD =6.5 ns（典型值）（CL= 50 PF） 高输出电流：扇出的10输入通道荷载 宽工作电压：VCC=2到6 V 低输入电流：最大1μA 低静态电源电流：ICC（静态）= 1μA最大（大= 25°C） |
