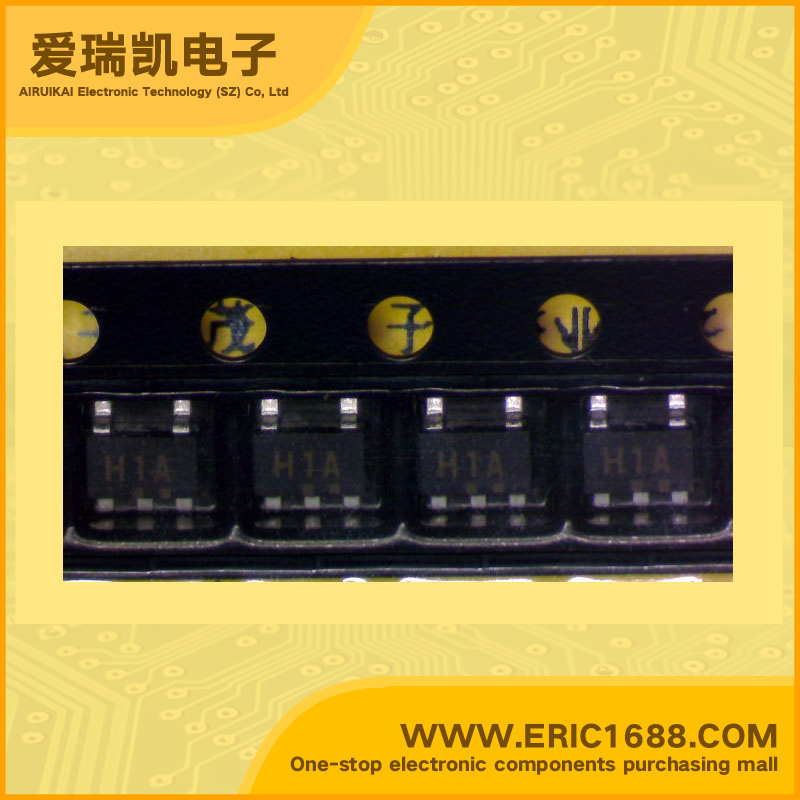

集成电路IC 与非门 HD74UH00EL SOT-153/MPAK-5V marking/标记 H1A
| 逻辑类型Logic Type | 与非门 NAND Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~6V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 12ns @ 4.5V，50pF |
| Description & Applications | 2–input NAND Gate ；Features Encapsulated in very small 5pins package of 2.9 × 1.6 × 1.1 mm, the efficiency to mount on substrate is significantly improved The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74HC00 Supply voltage range: 2 to 6 V Operating temperature range: –40 to +85°C | IOH | = IOL = 2 mA (min) |
| 描述与应用 | 2输入与非门;特性 封装在非常小的5PINS包装2.9×1.6×1.1毫米，安装在基板效率显著提高 基本门功能一字排开瑞萨单向逻辑系列 提供压纹盘带高速自动安装 电气特性相当于HD74HC00 电源电压范围：2到6 V 工作温度范围：-40至+85°C | IOH= IOL=2 mA（最小） |
