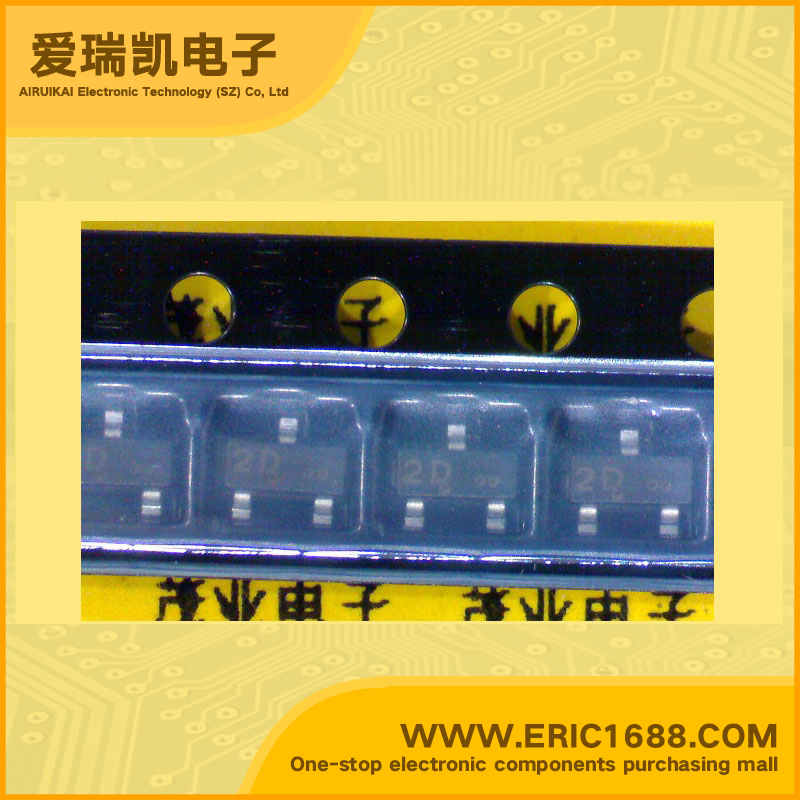

HMBTA92XLT1G PNP三极管 -300V -500mA/-0.5A 50MHz 40 -500mV/-0.5V SOT-23/SC-59 marking/标记 2D 电话拨号器电路
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -300V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −300V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 50MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 40 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 225mW/0.225W |
| Description & Applications | PNP epitaxial planar transistor Description The HMBTA92 is designed for application as a video output to drive color CRT, or as a dialer circuit in electronics telephone. |
| 描述与应用 | PNP外延平面晶体管 描述 的HMBTA92被作为视频输出，来驱动彩色阴极射线管，或作为在电子电话拨号器电路设计的应用程序。 |
