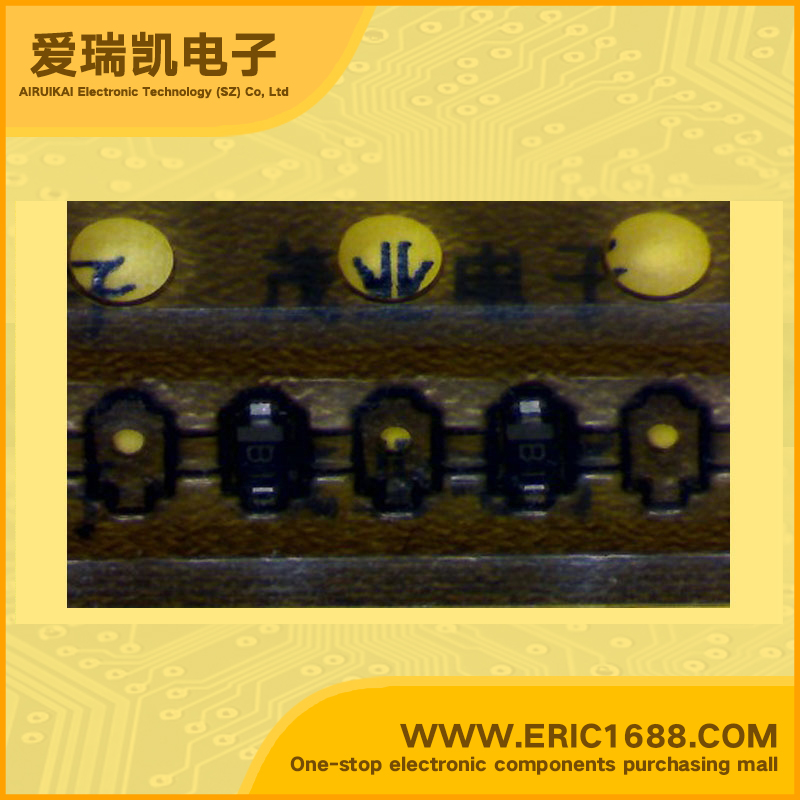

HVC355B 变容二极管 15V 6.40pF-7.20pF 2.2 SOD-523/UFP/0603 marking/标记 B1 调谐/高电容率/低串联电阻/良好C-V线性
| 反向电压VRReverse Voltage | 15V |
| 电容值CDiode capacitance | 6.40pF-7.20pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 2.55pF-2.95pF |
| @反向电压VR@Reverse Voltage | 4V |
| 电容比Capacitance ratio | 2.2 |
| Description & Applications | Variable Capacitance Diode for VCO High capacitance ratio. (n = 2.20 ) Low series resistance. (rs = 0.6 Ω ) Ultra small Flat Package (UFP) is suitable for surface mount design |
| 描述与应用 | 为VCO的变容二极管 高电容率。（n =2.20） 低串联电阻。 （RS= 0.6Ω） 超小型扁平包装（UFP）适合于表面贴装设计 |
| 规格书PDF |
