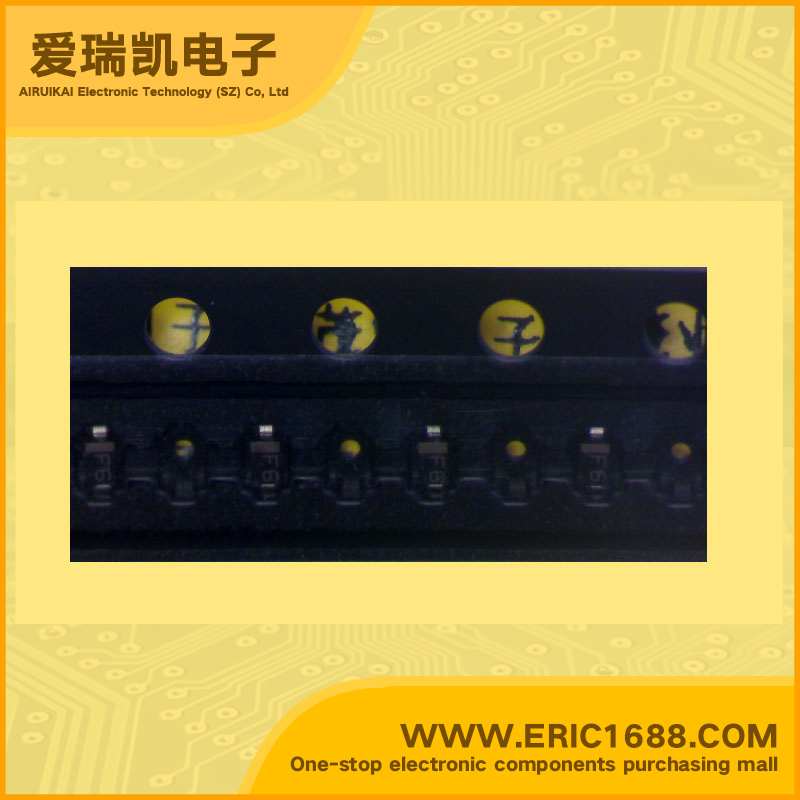

HVC385BTRF 变容二极管 15V 7.20pF—7.70pF 2.43-2.57 SOD-523/UFP/0603 marking/标记 F6 调谐/高电容率/低串联电阻
| 反向电压VRReverse Voltage | 15V |
| 电容值CDiode capacitance | 7.20pF—7.70pF |
| @反向电压VR@Reverse Voltage | 0.5V |
| 电容值CDiode capacitance | 2.70pF—3.20pF |
| @反向电压VR@Reverse Voltage | 2.5V |
| 电容比Capacitance ratio | 2.43-2.57 |
| Description & Applications | Variable Capacitance Diode for VCO High capacitance ratio. (n = 2.43 ) Low series resistance. (rs = 0.75 Ω ) Ultra small Flat Lead Package (UFP) is suitable for surface mount design |
| 描述与应用 | VCO的变容二极管 高电容率。（N= 2.43） 低串联电阻。 （RS=0.75Ω） 超小型扁平包装（UFP）适合于表面贴装设计 |
| 规格书PDF |
