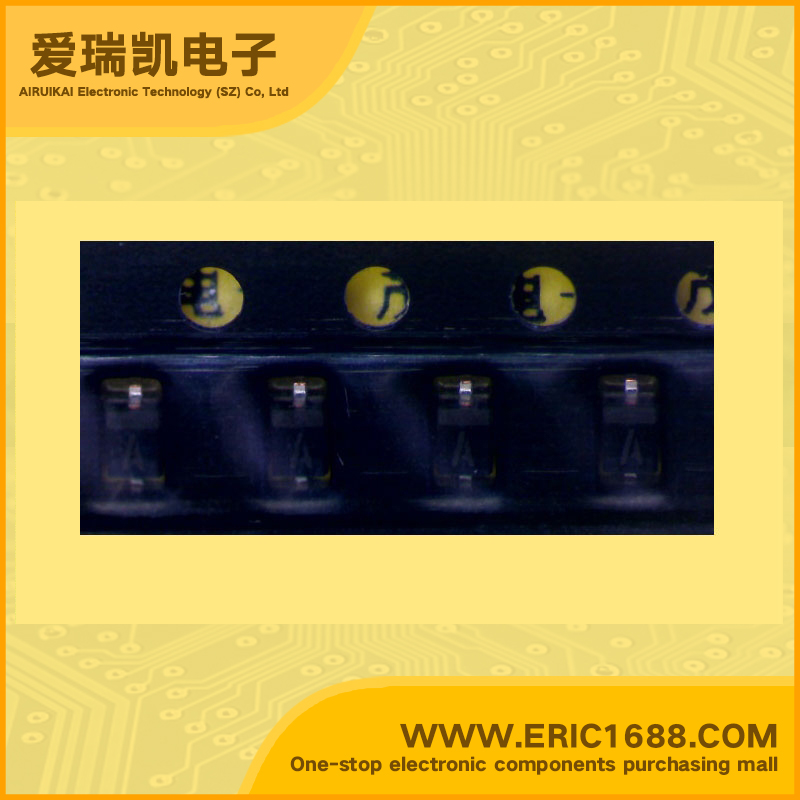

HVU12 变容二极管 35V 3.60pF-5.60pF 4 SOD-323/URP/0805 marking/标记 A 调谐/高电容率/低串联电阻/C-V曲线线性良好
| 反向电压VRReverse Voltage | 35V |
| 电容值CDiode capacitance | 3.60pF-5.60pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 0.45pF-0.85pF |
| @反向电压VR@Reverse Voltage | 30V |
| 电容比Capacitance ratio | 4 |
| Description & Applications | Variable Capacitance Diode for Electronic Tuning High capacitance ratio to wide tuning band width. (C1/C30=4.0) Low series resistance. (rs=1.5Ω) Ultra small Resin Package (URP) is suitable for surface mount design |
| 描述与应用 | 电子调谐变容二极管 高电容率，宽调谐频带宽度。（C1/C30=4.0） 低串联电阻。 （RS=1.5Ω） 超小型树脂包装（URP）适合于表面贴装设计 |
| 规格书PDF |
