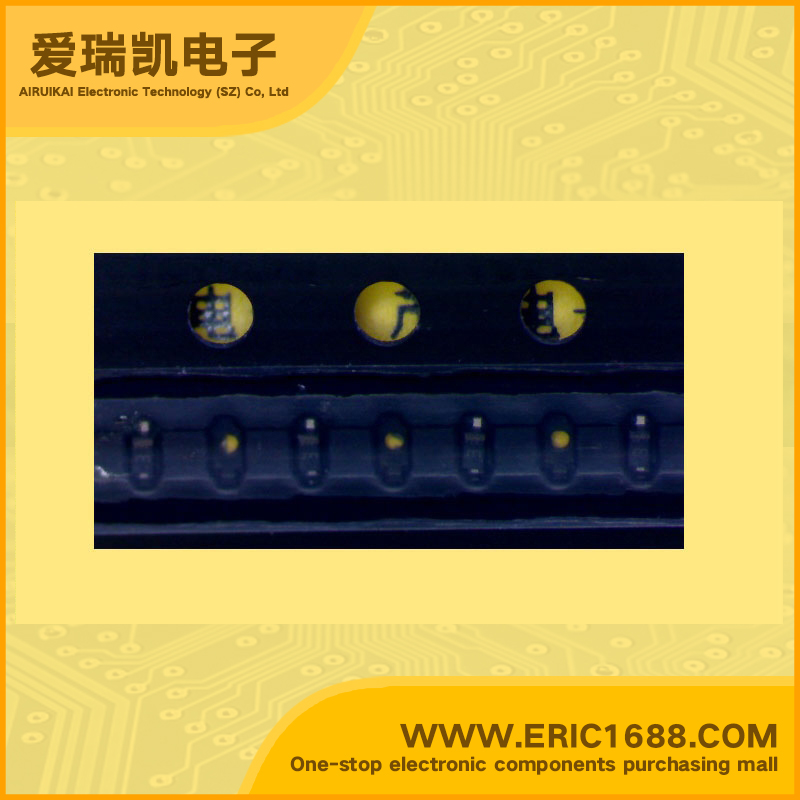

JDV2S16S 变容二极管 10V 3.38pF-3.8pF 2 SOD-723/SESC marking/标记 E 超高频调谐/高电容率/低串联电阻
| 反向电压VRReverse Voltage | 10V |
| 电容值CDiode capacitance | 3.38pF-3.8pF |
| @反向电压VR@Reverse Voltage | 0.5V |
| 电容值CDiode capacitance | 1.67pF-1.9pF |
| @反向电压VR@Reverse Voltage | 2.5V |
| 电容比Capacitance ratio | 2 |
| Description & Applications | VCO for UHF Band Radio High Capacitance Ratio : C0.5V/C2.5V = 2.0 Low Series Resistance : rs = 0.55 Ω This device is suitable for use in a small-size tuner |
| 描述与应用 | 用于超高频波段无线电的压控振荡器 高电容率C0.5V/C2.5V=2.0 低串联电阻：RS= 0.55Ω 这个装置适合在一个小尺寸的调谐器中使用 |
| 规格书PDF |
