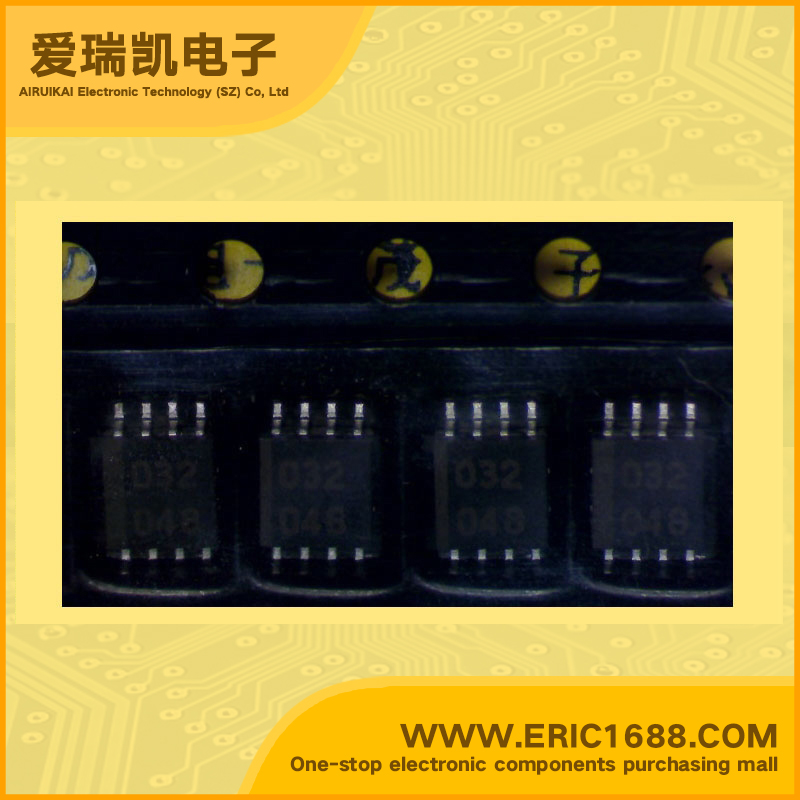

集成电路IC 或门 KIC7W32FU SM8 marking/标记 O32

热销商品

产品描述
逻辑类型Logic Type或门 OR Gate
电路数Number of Circuits2
输入数Number of Inputs2
电源电压VccVoltage - Supply2V~6V
静态电流IqCurrent - Quiescent (Max)1uA
输出高,低电平电流Current - Output High, Low-5.2mA,5.2mA
低逻辑电平Logic Level - Low0.5V~1.8V
高逻辑电平Logic Level - High1.5V~4.2V
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL8ns @ 4.5V,50pF
Description & ApplicationsDual 2-input OR Gates;Features High speed Low power dissipation High noise immunity Output drive capability: 10 LSTTL loads Symmetrical output impedance Balanced propagation delays Wide operating voltage range
描述与应用双路2输入或门;特性 高速 低功耗 高抗干扰 输出驱动能力:10输入负载 对称的输出阻抗 平衡传输时延 宽工作电压范围
规格书PDF
