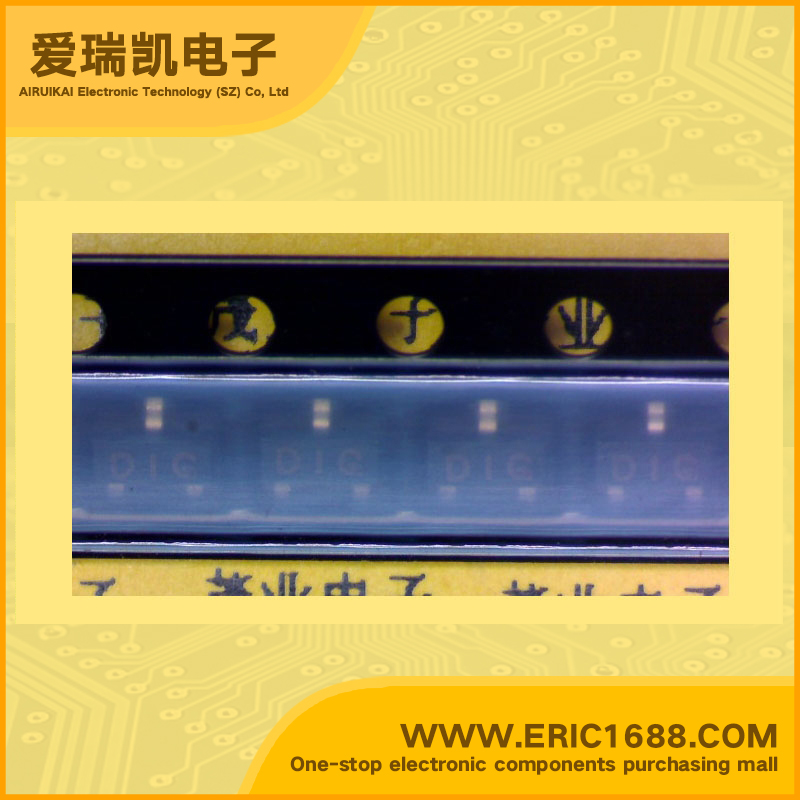

KSA812-G-MTF PNP三极管 -60V -100mA/-0.1A 180MHz 200~400 -300mV/-0.3V SOT-23/SC-59 marking/标记 D1G 低频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | −100mA/-0.1A |
| 截止频率fTTranstion Frequency(fT) | 180MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 200~400 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率PcPoWer Dissipation | 150mW/0.15W |
| Description & Applications | PNP epitaxial planar transistor Low Frequency Amplifier Complement to KSC1623 |
| 描述与应用 | PNP外延平面晶体管 低频放大器 补充型KSC1623 |
| 规格书PDF |
