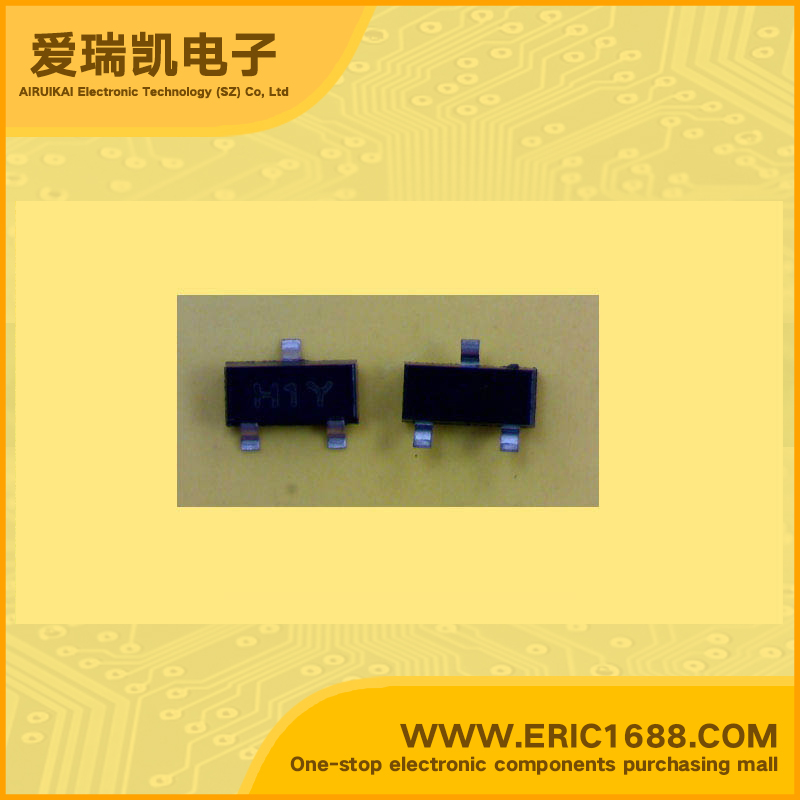

KSC2755YMTF NPN三极管 30V 20mA 600MHz 120~240 SOT-23/SC-59 marking/标记 H1Y RF放大器，VHF电视调谐器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 30V |
| 集电极连续输出电流ICCollector Current(IC) | 20mA |
| 截止频率fTTranstion Frequency(fT) | 600MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | RF AMP ,FOR VHF TV TUNER Low NF,high Gpe(NF.typ=2.0dB,Gpe.typ=23dB ) Forward AGC Capability to 30dB |
| 描述与应用 | RF放大器，VHF电视调谐器 低噪声系数，高增益 正向AGC能力可达30dB |
