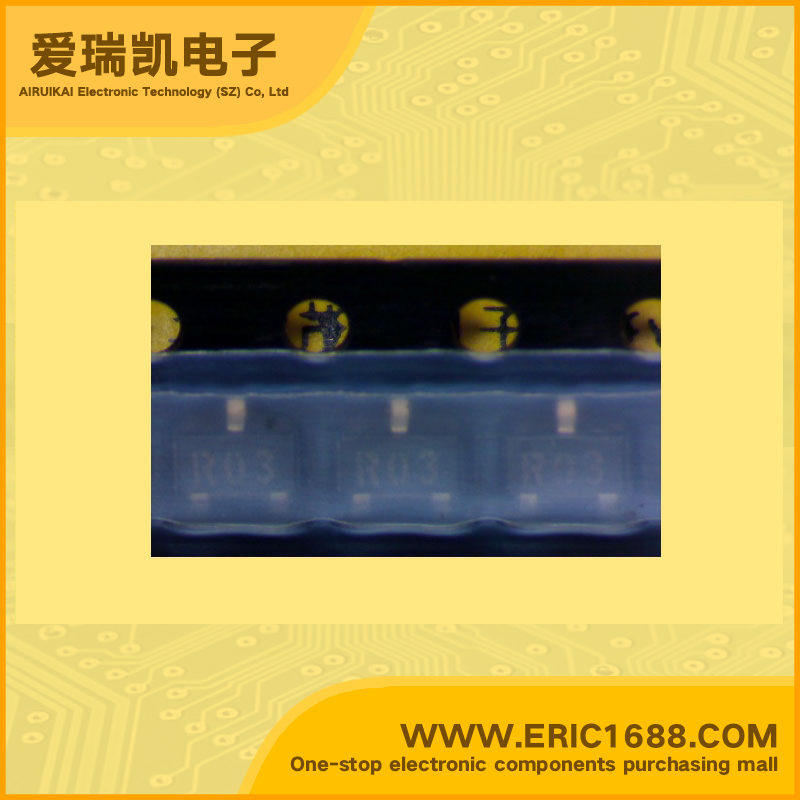

KSR1103TF 带阻NPN三极管 50V 100mA/0.1A 22k 22k SOT-23/SC-59 marking/标记 R03 开关电路 逆变器 接口电路 驱动电路应用
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 56 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Features Switching Circuit,Inverter,interface circuit Driver circuit Application Built in bias Resistor Complement to KSR2103 |
| 描述与应用 | 特性 开关电路，逆变器，接口电路，驱动电路应用 内置偏置电阻 对管是KSR2103 |
