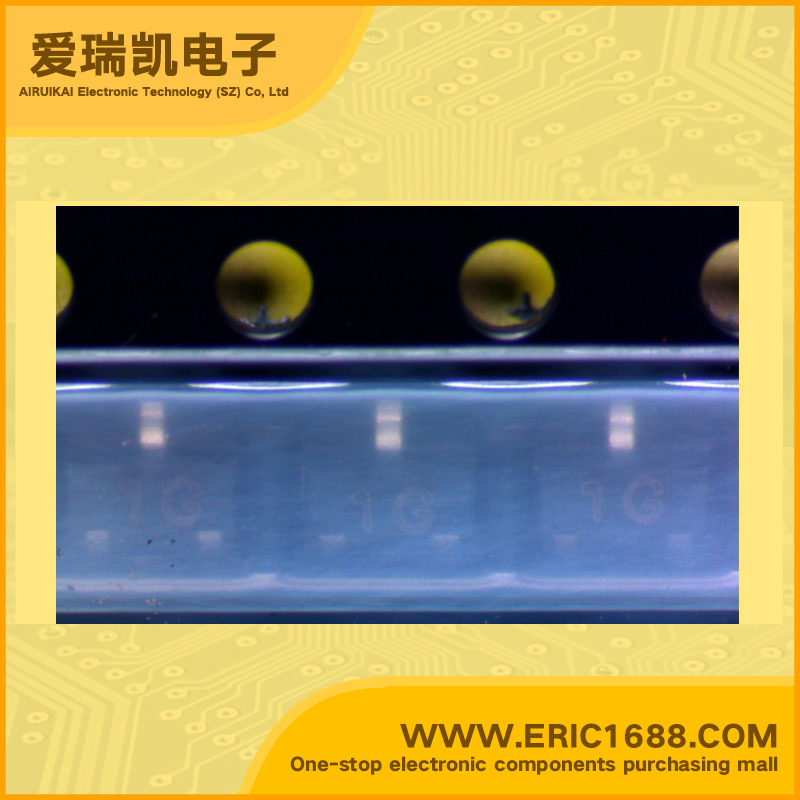

KST06 NPN三极管 80V 500mA/0.5A 100MHz 50 250mV/0.25V SOT-23/SC-59 marking/标记 1G
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 80V |
| 集电极连续输出电流ICCollector Current(IC) | 500mA/0.5A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 50 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率PcPower Dissipation | 350mW/0.35W |
| Description & Applications | Driver Transistor • Collector-Emitter Voltage: VCEO = KST05: 60V KST06: 80V • Collector Power Dissipation: PC (max) = 350mW • Complement to KST55/56 |
| 描述与应用 | 驱动晶体管 •集电极 - 发射极电压VCEO = KST05：60V KST06：80V •集电极耗散功率：PC（最大值）=350MW •KST55/56补 |
