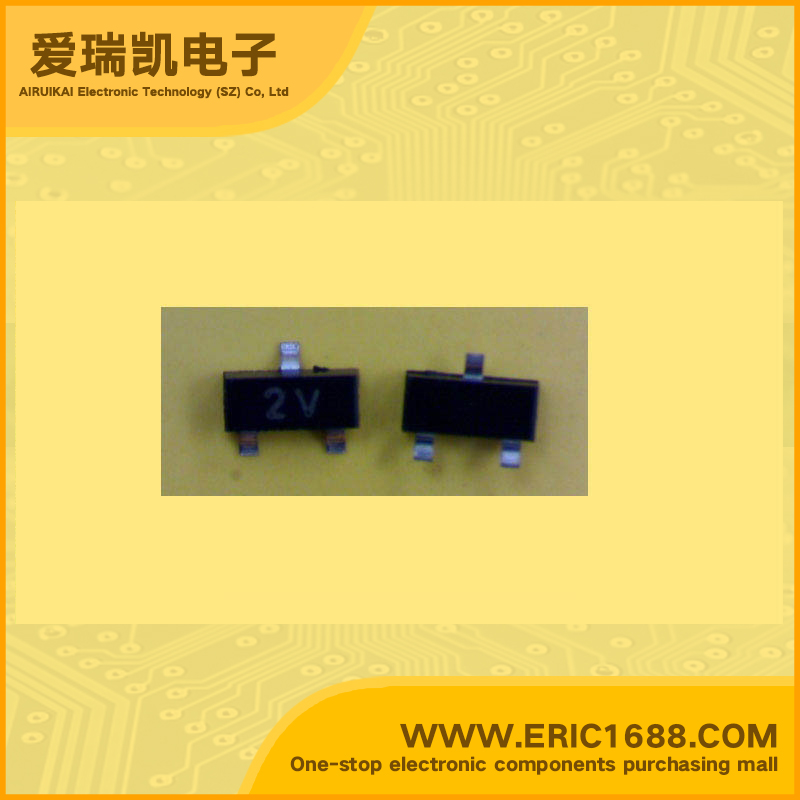

KST64 PNP三极管 -30V -500mA/-0.5A 125MHz 20000 -1.5V SOT-23/SC-59 marking/标记 2V
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 125MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 20000 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1.5V |
| 耗散功率PcPoWer Dissipation | 350mW/0.35W |
| Description & Applications | PNP epitaxial planar transistor Darlington Transistor |
| 描述与应用 | PNP外延平面晶体管 达林顿晶体管 |
| 规格书PDF |
