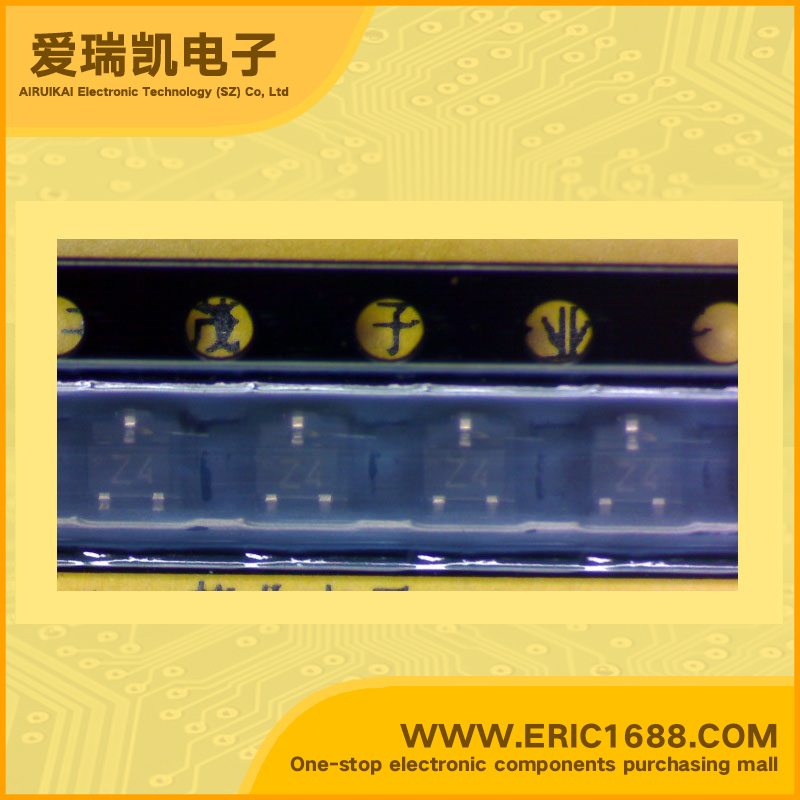

KTA2015-Y PNP三极管 -35V -500mA/-0.5A 200MHz 120~240 -250mV/-0.25V SOT-323/SC-70 marking/标记 Z4 开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -35V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −30V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 120~240 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率PcPoWer Dissipation | 100mW/0.1W |
| Description & Applications | PNP epitaxial planar transistor GENERAL PURPOSE APPLICATION SWITCHING APPLICATION FEATURE Excellent hFE Linearity Complementary to KTC4076 |
| 描述与应用 | PNP外延平面晶体管 通用应用 开关中的应用 特写 优秀HFE线性 互补KTC4076 |
| 规格书PDF |
