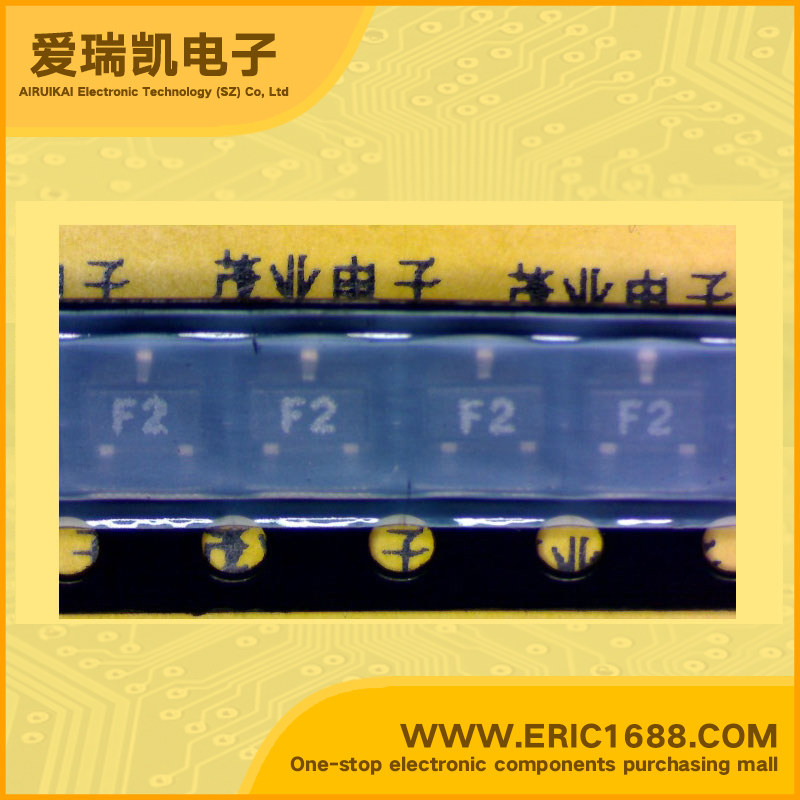

KV1420 变容二极管 30V 39.79pF-46.16pF 2.8 SOT-23/SC-59 marking/标记 F2 调谐/出色线性度
| 反向电压VRReverse Voltage | 30V |
| 电容值CDiode capacitance | 39.79pF-46.16pF |
| @反向电压VR@Reverse Voltage | 7V |
| 电容值CDiode capacitance | 13.93pF-16.49pF |
| @反向电压VR@Reverse Voltage | 25V |
| 电容比Capacitance ratio | 2.8 |
| Description & Applications | VARIABLE CAPACITANCE DIODE Very Low Series Resistance Excellent Linearity (CV Curve) with Very Wide Operating Range Large Capacitance Ratio (A = 2.57 minimum) Two Diodes in a Miniature Package (SOT23-3) Very Small Capacitance Deviation at Tape/Reel FM Radio Voltage Controlled Oscillator Stereo Tuner |
| 描述与应用 | 变容二极管 非常低的串联电阻 具有非常广泛的出色的线性度（CV曲线） 工作范围 大容量比率（A =2.57最低） 两个二极管在一个微型封装（SOT23-3） 非常小的电容偏差带/卷 FM收音机 压控振荡器 立体声调谐器 |
| 规格书PDF |
