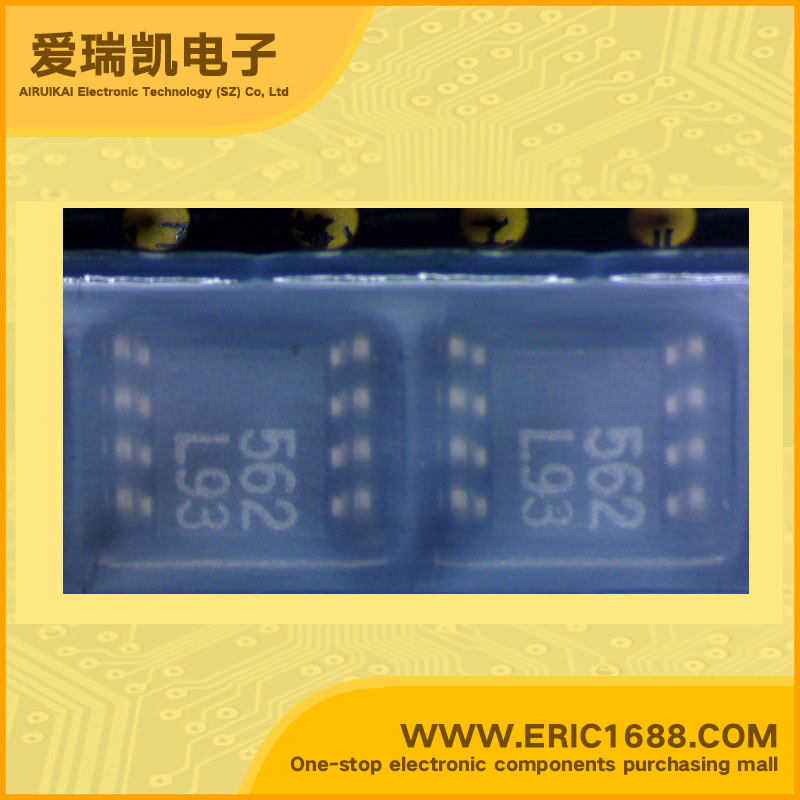

KV1562MTL 变容二极管 16V 428.0pF-506.0pF 17 SOP-8 marking/标记 调谐/出色的CV曲线线性度
| 反向电压VRReverse Voltage | 16V |
| 电容值CDiode capacitance | 428.0pF-506.0pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 20.0pF-27.5pF |
| @反向电压VR@Reverse Voltage | 8V |
| 电容比Capacitance ratio | 17 |
| Description & Applications | Excellet Matching Between Elements Excellent Linearity of The CV Curve High Q: Q=200 to Extra Large Capacitance Ratio: A=17.0 to |
| 描述与应用 | 极好的元件之间匹配 出色的CV曲线线性度 高Q：Q=200 超大电容率：A =17.0- |
| 规格书PDF |
