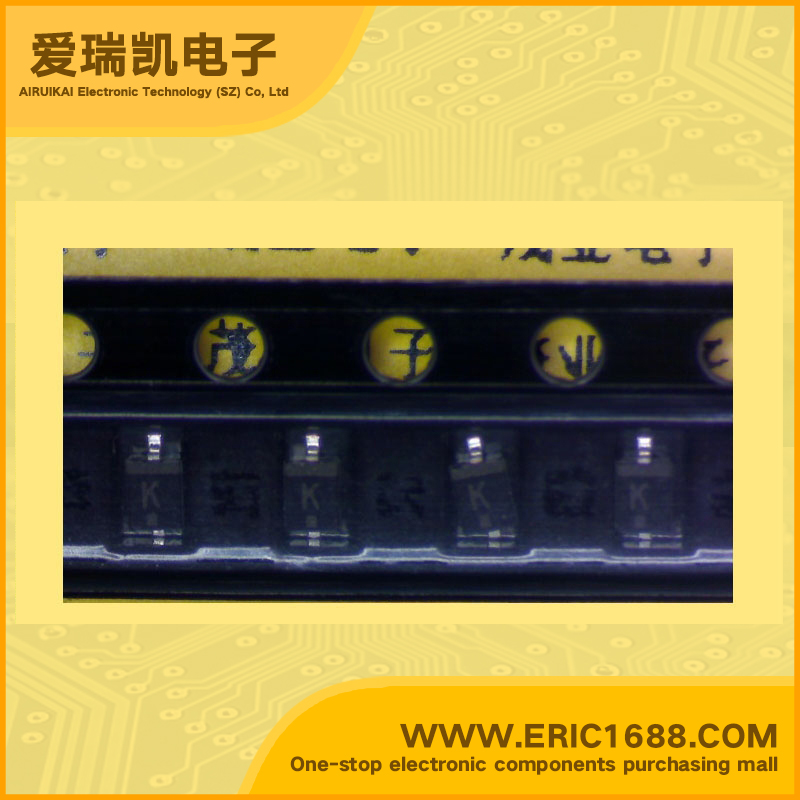

KV1861ETR 变容二极管 18V 19.75pF-22.25pF 4.7 SOD-323/SC-76/0805 marking/标记 K 调谐/出色的CV曲线线性度/超高电容率
| 反向电压VRReverse Voltage | 18V |
| 电容值CDiode capacitance | 19.75pF-22.25pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 3.65pF-4.45pF |
| @反向电压VR@Reverse Voltage | 7V |
| 电容比Capacitance ratio | 4.7 |
| Description & Applications | V series variable capacitance diode for communications equipment Excellent Linearity of The CV Curve Extra Large Capacitance Ratio: A=4.7to Extra Low Series Resistance: RS=0.40Ω |
| 描述与应用 | V系列通信设备用的可变电容二极管 出色的CV曲线线性度 超大电容率：A =4.7to 额外的低串联电阻：RS=0.40Ω |
| 规格书PDF |
