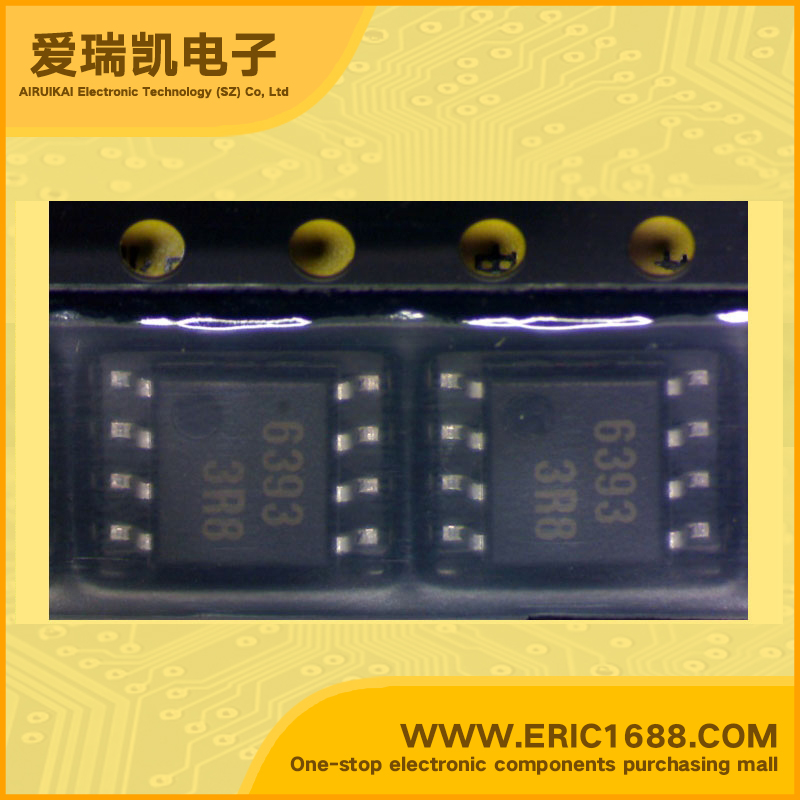

比较器 LA6393M-TL MFP8 marking/标记 6393
类型Type | |
元件数Number of Elements | 2 |
输出类型Output Type | 开路集电极 Open Collector |
电源电压,单/双 (±)Voltage - Supply, Single/Dual (±) | 2 V~36 V,±1 V~18 V |
输入失调电压(最大值)Voltage - Input Offset (Max) | ±5mV |
输入偏置电流(最大值)Current - Input Bias (Max) | 0.25µA |
输出电流(典型值)Current - Output (Typ) | 16mA |
静态电流(最大值)Current - Quiescent (Max) | 1mA |
CMRR,PSRR(典型值)CMRR, PSRR (Typ) | |
传播延迟(最大值)Propagation Delay (Max) | |
滞后Hysteresis | |
Description & Applications | FEATURES • High-Performance dual Comparator • Wide supply voltage range (Single supply : 2.0 to 36.0V,dual supplies : ±1.0 to 18.0V). • Wide common-mode input voltage range (0 to VCC–1.5V). • Open collector output enabling wired OR. • Small current dissipation (0.6mA) and low power. • Mini flat package enabling compactness of sets. |
描述与应用 | 特点 •高性能双比较器 •宽电源电压范围(单电源:2.0〜36.0V,双电源:±1.0〜18.0V)。 •宽共模输入电压范围(0到VCC-1.5V)。 •集电极开路输出,使有线或。 •小的电流损耗(0.6毫安)和低功耗。 •迷你平板包装,使紧凑套。 |
规格书PDF |
