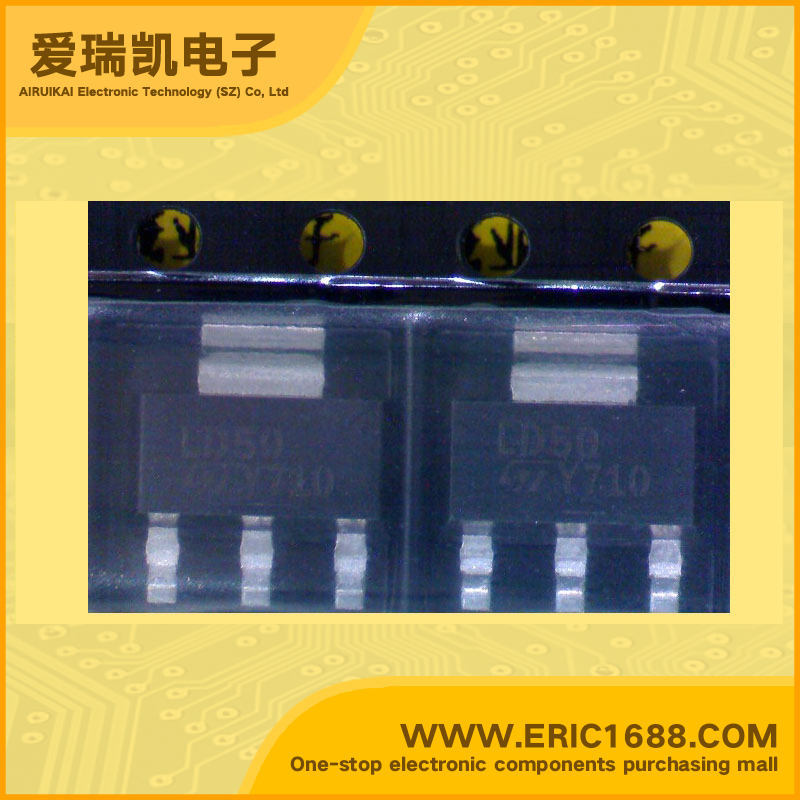

LD1117S50TR LDO电压调整器/稳压电源IC 5V 1.1V SOT-223 marking/标记 LD50 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 15V |
| 输出电压VOUTVoltage - Output | 5V |
| 输出电流IoCurrent - Output | 800mA/0.8A |
| 最大压降VDOVoltage - Dropout | 1.1V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | 12W |
| Description & Applications | Low drop fixed and adjustable positive voltage regulators ;• Low dropout voltage (1V TYP.) •2.85V Device performances are suitable •Output current up to 800 mA •Internal current and thermal limit • Available in ± 1% (at 25°C) and 2% in full temperature range •Supply voltage rejection: 75dB (typ.) |
| 描述与应用 | 低压降固定和可调正电压稳压器;•低压差电压（1V TYP。） •2.85V器件性能适合 •输出电流高达800毫安 •内部电流和热限制 •可在±1％（在25°C）和全面的2％ 温度范围 •电源电压抑制比：75dB（典型值） |
| 规格书PDF |
