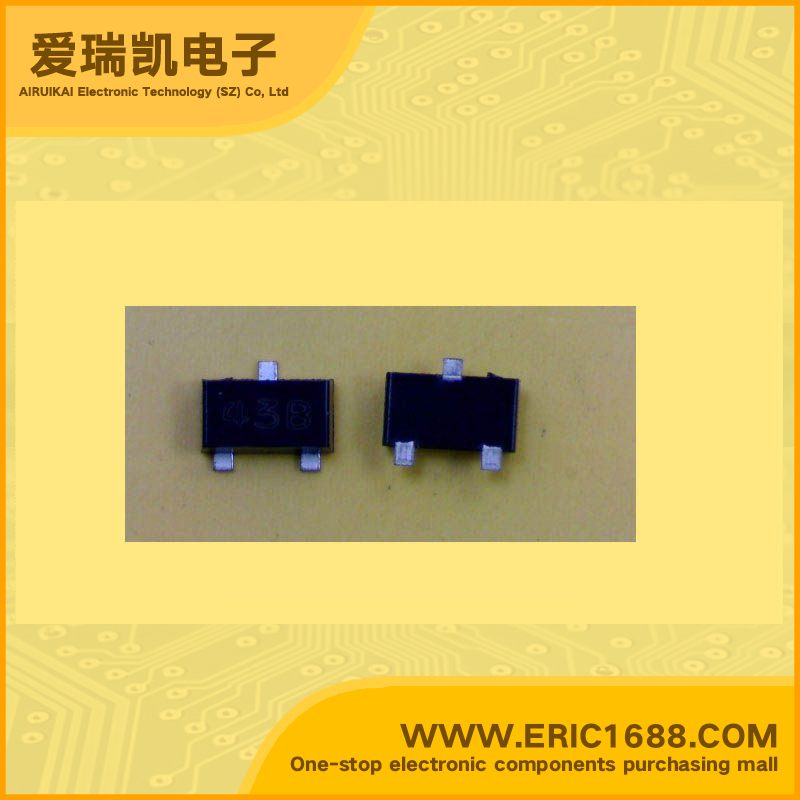

LM431SBCMFX 电压基准电源IC 2.495 V ~ 36V SOT-23 marking/标记 43B 可调精密齐纳分流稳压器
| 参考类型Reference Type | 分流器，可调式 Shunt, Adjustable |
| 输出电压VoVoltage - Output | 2.495 V ~ 36V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 50ppm/°C |
| 输入电压Voltage - Input | 2.495 V ~ 36V |
| 阴极电流Current - Cathode | 1mA |
| 输出电流IOUTCurrent - Output | 100mA/0.1A |
| Description & Applications | FEATURES • Adjustable Precision Zener Shunt Regulator • Average temperature coefficient 50 ppm/°C • Temperature compensated for operation over the full temperature range • Programmable output voltage • Fast turn-on response • Low output noise |
| 描述与应用 | 特点 •可调精密齐纳分流稳压器 •平均温度系数为50 ppm/°C •温度补偿在整个温度范围内操作 •可编程输出电压 •快速导通响应 •低输出噪声 |
| 规格书PDF |
