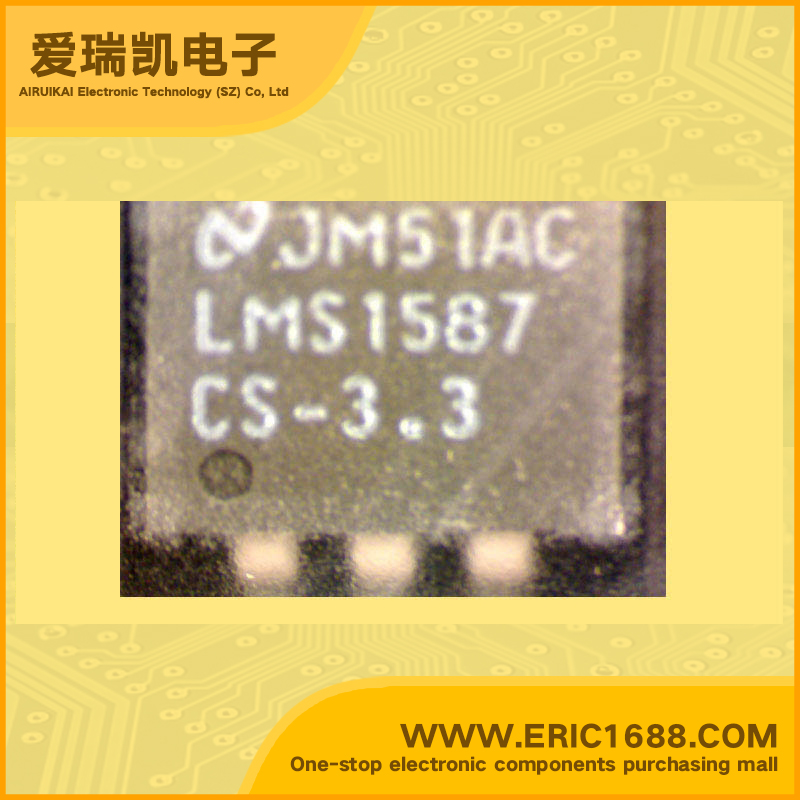

LMS1587CSX-3.3 LDO电压调整器/稳压电源IC 3.3V 1.15V TO-263 marking/标记 LMS1587CS-3.3 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 13V |
| 输出电压VOUTVoltage - Output | 3.3V |
| 输出电流IoCurrent - Output | 3A |
| 最大压降VDOVoltage - Dropout | 1.15V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 5A and 3A Low Dropout Fast Response Regulators ;•Fast transient response •Available in Adjustable, 1.5V, and 3.3V versions •Current limiting and thermal protection • Commercial temp. range 0˚C to 125˚C •Industrial temp. range −40˚C to 125˚C •Line regulation 0.005% (typical) •Load regulation 0.05% (typical) •Pentium™ processor supplies •Other microprocessor supplies • Low voltage logic supplies |
| 描述与应用 | 5A和3A低压差快速响应稳压器;•快速瞬态响应 •提供可调，1.5V和3.3V版本 •电流限制和热保护 •工商温度。范围0˚C至125˚C •工业级温度。范围-40˚C至125˚C •行规0.005％（典型值） •负载调整率0.05％（典型值） •奔腾™处理器供应 •其他的微处理器供应 •低电压逻辑电源 |
