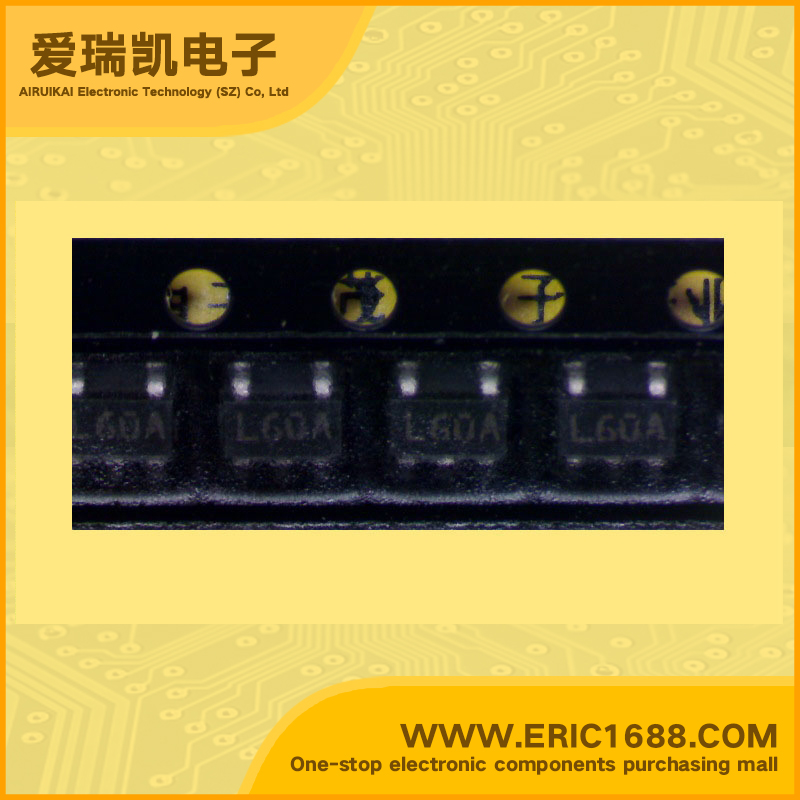

LP2982AIM5-2.8 LDO电压调整器/稳压电源IC 2.8V 120mV/0.12V SOT-153/MF05A/SOT23-5 marking/标记 L60A 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | -0.3~16V |
| 输出电压VOUTVoltage - Output | 2.8V |
| 输出电流IoCurrent - Output | 50mA |
| 最大压降VDOVoltage - Dropout | 120mV/0.12V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Micropower 50 mA Ultra Low-Dropout Regulator ;•Ultra low dropout voltage •Guaranteed 50 mA output current •Typical dropout voltage 180 mV @ 80 mA •Smallest possible size (SOT-23, micro SMD package) • Requires minimum external components • < 1 µA quiescent current when shutdown • Low ground pin current at all loads •Output voltage accuracy 1.0% (A Grade) • High peak current capability (150 mA typical) • Wide supply voltage range (16V max) 0.3Ω typical (10 Hz to 1 MHz) •Overtemperature/overcurrent protection •−40˚C to +125˚C junction temperature range •Custom voltages available •Cellular Phone •Palmtop/Laptop Computer •Personal Digital Assistant (PDA) • Camcorder, Personal Stereo, Camera |
| 描述与应用 | 微功耗50毫安超低压差稳压器;•超低压差电压 •保证50 mA的输出电流 •典型漏失电压为180 mV@80毫安 •尽可能小的尺寸（SOT-23，micro SMD封装） •需要最少的外部元件 <1μA的静态电流，关断时 •低接地端子电流在所有负载 •输出电压精度为1.0％（A级） •高的峰值电流能力（150 mA典型） •宽电源电压范围（16V最大）0.3Ω（典型值）（10赫兹到1兆赫） •过热/过流保护 •-40˚C至+125˚C的结温范围内 •提供定制的电压 •移动电话 •掌上电脑/笔记本电脑 •个人数字助理（PDA） •摄像机，照相机，个人立体声 |
| 规格书PDF |
