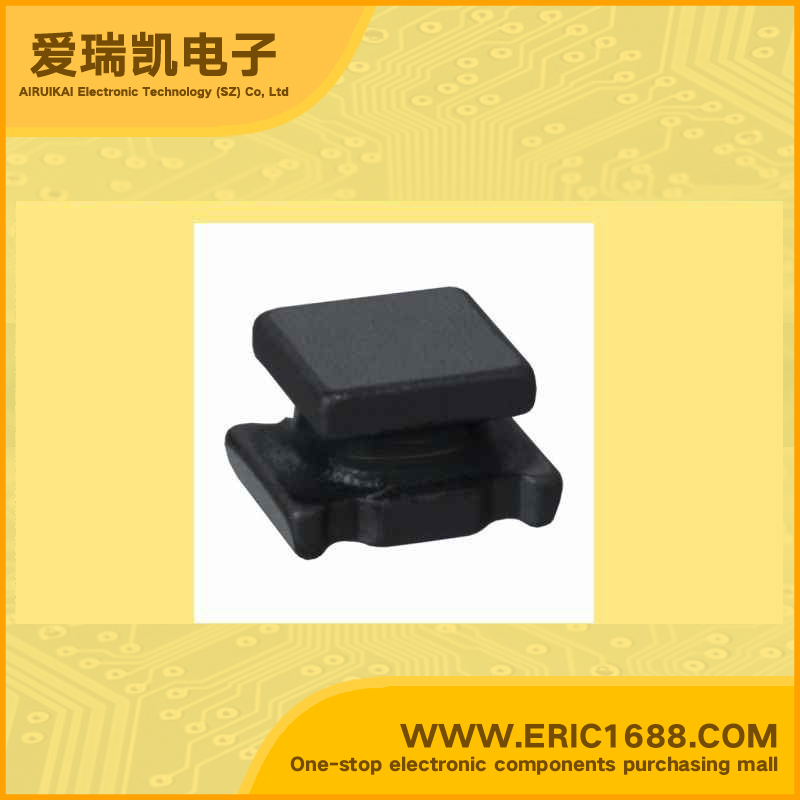

小功率电感 LQH32MN560K23L 56UH 3225-560K
| 电感值Inductance | 56UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 85mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 40 @ 1MHz |
| 自振谐频率SRFFrequency - Self Resonant | 10MHz |
| DC电阻DCRDC Resistance (DCR) | 4.9Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | LQH32M Series LQH32M series consists of miniature chip inductors wound on a special ferrite core. Features 1. High Q value at high frequencies and low DC resistance 2. Wide inductance range from 1.0 to 560 micro H |
| 描述与应用 | LQH32M系列 LQH32M系列由微型片式电感缠绕在一个特殊的铁氧体磁芯。 特点 1。高Q值在高频率和低直流电阻 2。宽泛的电感值范围从1.0到560微ħ |
| 规格书PDF |
