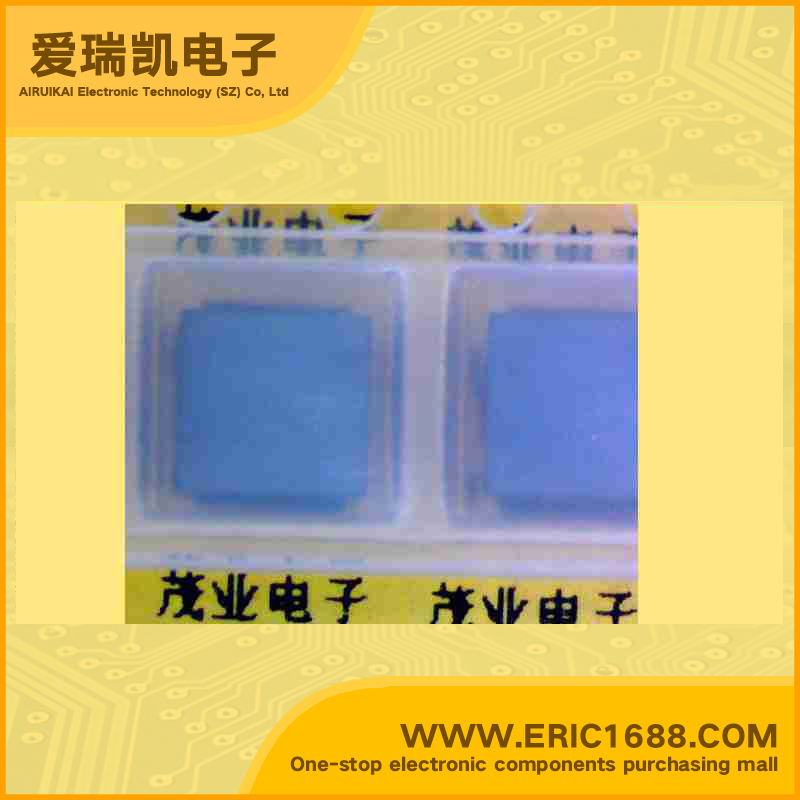

功率电感 LQH55DN471M01L(LQN6C471M04M00-01) 470uH 5650-471
| Q值Q Value | |
| 电感值Inductance | 470uH |
| 误差Tolerance | ± 20% |
| 额定电流Current Rating | 240mA |
| 饱和电流Current - Saturation | |
| DC电阻DCRDC Resistance (DCR) | 5.4Ω/Ohm |
| Description & Applications | FEATURES 1. Both the LQN6C series with its open magnetic path construction and the LQS66C series with its magnetic shielding construction allow application to a wide variety of uses. 2. The inductance range covers from 0.12μH up to 10000μH allowing minute compatibility with the E6 series at 1μH to 1000μH. 3. Because the direct current resistance is small as well as the voltage drop and power consumption being small also, they are optimum for use as choke coils for DC power supply circuits. !APPLICATIONS ÁCamcorders, portable AV equipment, etc. ÁDC/DC converters and DC power supplies. |
| 描述与应用 | 特点 1。其开放磁路的LQN6C串联 建设和LQS66C系列凭借其磁性 屏蔽施工允许应用多种 的用途。 2。 0.12μH电感范围涵盖10000μH 允许在1μH至E6系列兼容性分钟 1000μH。 3。由于直流电阻小以及 小的电压降和功率消耗 同时，它们是最适合用作直流扼流圈 电源电路。 应用！ ÁCamcorders，便携式AV设备等。 ADC/ DC转换器和DC电源。 |
